Routing Cables Through the Window

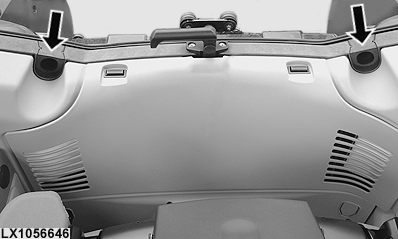

LX1056646-UN-19JUL12

The rear window of the cab is provided with two openings, allowing the cables to be routed. Open the window and take out the rubber stoppers. Cut the rubber stoppers at the incisions provided to enable the cables to be routed. Connect the connectors, insert the rubber stoppers and close the window.
