ISOBUS Socket

LX1056718-UN-16JUL12

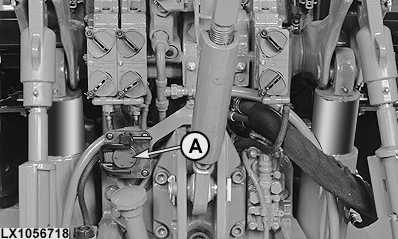

Implements meeting ISO Standard 11783 may be connected to this socket (A). Read the operator's manual provided by the implement manufacturer and observe all safety messages in the manual and on the implement prior to use.

IMPORTANT: Electrical equipment requiring high current inputs may be operated, but the supply circuit must never be overloaded. Remember, total load comprises the sum of all the current consumers connected to the on-board circuit at any one time. This also applies if the consumers are connected to the on-board circuit at different sockets.
