Comfort Seat MSG83

LX1056927-UN-12MAY14

IMPORTANT: When adjusting the seat, there is a danger of crushing. Objects placed in the cab may limit free space. Make sure that there is sufficient distance to adjacent components to prevent collisions. Accidental contact with the controls could cause the tractor or implement to operate.

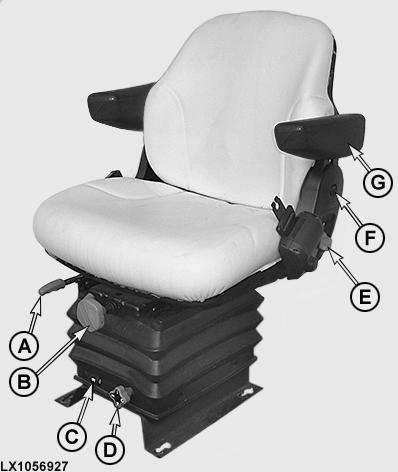

• A — Fore/aft adjustment

Pull lever (A) and move the seat to the desired position. Let the lever click into place.

• B — Weight adjustment

The operator's seat must be occupied in order to adjust it to the operator's weight. To adjust the seat to the operator's weight, allow the seat to settle, then adjust suspension as desired by means of crank (B).

NOTE: The operator's seat can be set for a weight of 50 to 130 kg (110 to 285 lb).

• C — Weight Indicator

Use indicator (C) to check the weight setting.

• D — Adjust seat height

To adjust seat height, put a weight on the seat and use knob (D) to adjust height of seat.

Seat height can be set to any of four positions, from 0 (lowest) to III (highest).

• E — Adjust tilt of backrest

Pull lever (E) upwards and hold. Tilt the angle of the backrest to the desired position and let the lever latch back in audibly.

• F — Adjust height of armrests

On both sides, remove cover (F), loosen the hex. nut and adjust the armrest to the desired position. Tighten the hex. nut and re-install cover (F).

• G — Armrests can be folded up

To facilitate access and egress, armrest (G) can be folded up.
