Wiper and Washer System

LX1056653-UN-28JUN12

LX1056654-UN-28JUN12

LX1053361-UN-16JAN12

A - Windshield Wiper Switch

B - Rear Window Wiper Switch

D - Windshield Washer Reservoir

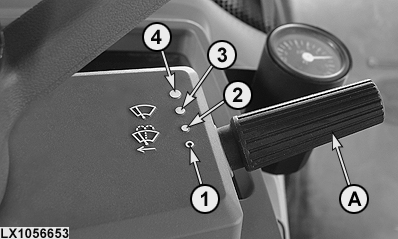

Windshield wiper switch (A) has four positions, of which only three are used:

• 1 = off
• 2 = slow wipe
• 3 = fast wipe
• 4 = not used

The windshield washer system is operated using switch (A) (push towards steering column).

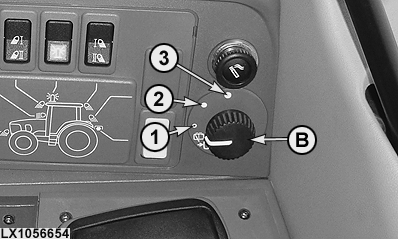

Rear window wiper switch (B) has three positions:

• 1 = off
• 2 = slow wipe
• 3 = fast wipe

The window washer system is operated using switch (B) (push the switch).

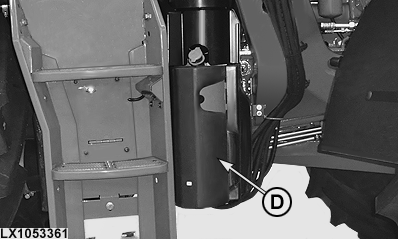

Add anti-freeze solution to water in reservoir (D) if temperature is liable to drop below freezing point.
