Reduce Fuel Consumption


Service correctly

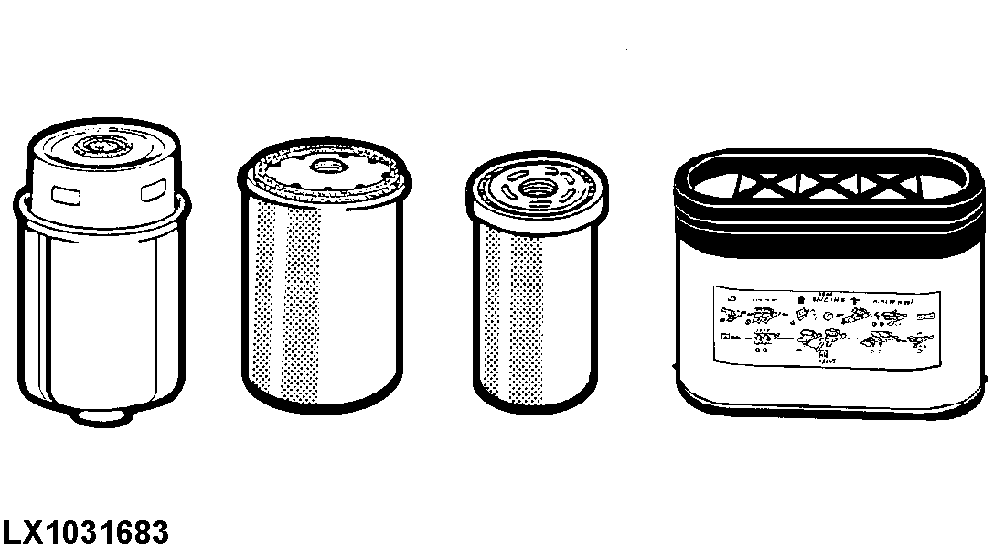

LX1031683
LX1031683-UN-27MAR03

Replace air cleaner element and fuel, engine oil and transmission/hydraulic filter elements at specified service intervals (see Service section).

Use only John Deere filters!

L103642
L103642-UN-15AUG94

Use recommended oils and lubricants only (see Fuel, Lubricants, Hydraulic Oil and Coolant section).

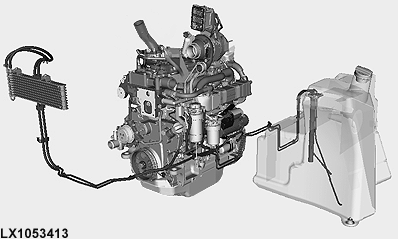

LX1053413
LX1053413-UN-19MAR12

Have the fuel system checked regularly by your John Deere dealer.

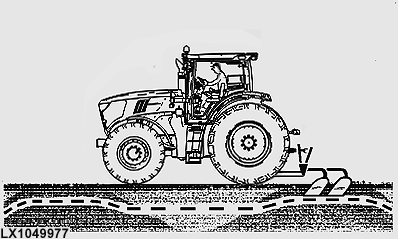

LX1049977
LX1049977-UN-18MAY11

Have draft link control functions of the hitch checked regularly by your John Deere dealer.


Drive with correct tire pressures

L103645
L103645-UN-15AUG94

Adapt tire pressures to type of work and ground conditions (consult your John Deere dealer or local tire agent).


Choose correct ballast

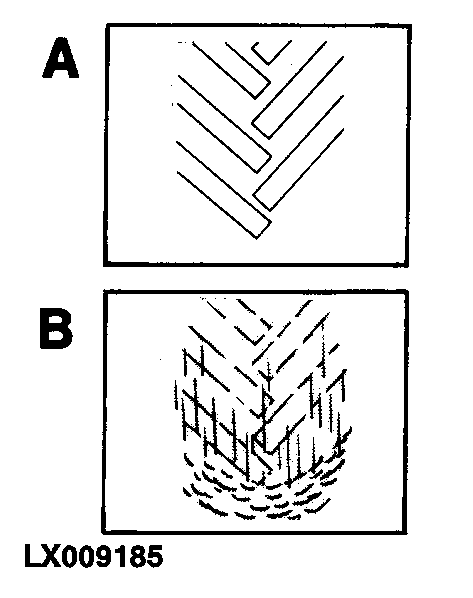

LX009185
LX009185-UN-01SEP94

LX009186
LX009186-UN-01SEP94

A - Too Much Ballast

B - Too Little Ballast

C - Correct Ballast

Choose ballast to obtain 10 to 15% wheel slip. Use no more ballast than necessary, reduce ballast for light work.


Select correct gear

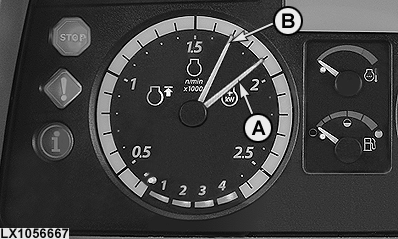

LX1056667
LX1056667-UN-09OCT12

Always drive in the highest possible gear with reduced engine speed.

Choose a gear so that engine speed (A) with engine under no load drops 150 to 250 rpm when the tractor is operating with the engine under load (B).

NOTE: For light work, reduce engine speed below 2000 rpm. Select a gear so that engine speed drops 200 to 300 rpm when operating.

OULXA64,0002A7B-19-20120702
