Engage Front-Wheel Drive

LX1056669-UN-02OCT12

LX1056670-UN-09JUL12

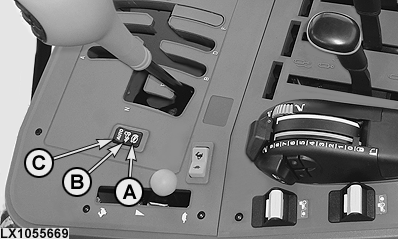

A - Disengaging Front-Wheel Drive

B - Engaging Front-Wheel Drive (Center Position of Switch)

C - Front-Wheel Drive, Selecting Automatic Mode

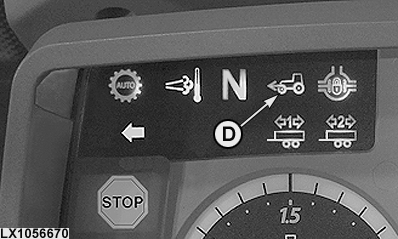

D - Indicator Light Comes On when Front-Wheel Drive is Engaged

The front-wheel drive can be engaged and disengaged in all gears (forward and reverse), on-the-go and under load without using the clutch.

NOTE: Disengage front wheel drive before driving at high speed on public roads.

NOTE: Regardless of which front-wheel drive mode is selected, if travel speed is over 5 km/h (3.1 mph), front-wheel drive switches on automatically when the brakes are applied (provided both brake pedals are depressed) and remains on until the tractor has come to a standstill. The front-wheel drive indicator light (D) comes on.

The front-wheel drive mode selected previously becomes active again once braking has been completed.

NOTE: When driving at less than 5 km/h (3.1 mph) with front-wheel drive off, front-wheel drive does not come on when the brakes are applied.

Automatic Mode

When automatic mode is selected, front-wheel drive disengages automatically whenever tractor speed exceeds 23.3 km/h (14.5 mph).

When tractor speed drops below 21 km/h (13 mph), front-wheel drive re-engages automatically.
