Engage Creeper Transmission

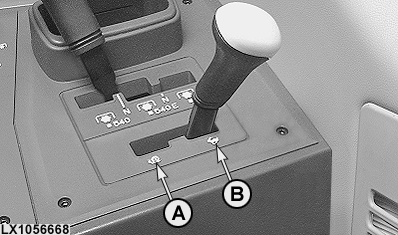

LX1056668-UN-04JUL12

A - Creeper Speed

B - High Speed

To engage or disengage creeper transmission, depress clutch pedal.

Select creeper as follows:

1. Select range.
2. Engage creeper.

Never engage creeper transmission with engine speed higher than 1000 rpm.

IMPORTANT: Do not use creeper transmission when working with implements that penetrate the soil and require high tractive force.

Never use the creeper transmission in range D or higher. Using the creeper transmission under any of these circumstances may lead to mechanical failure.
