Tractors with TLS Front Axle

LX1056671-UN-09OCT12

The suspended front axle does not react to changes in load (e.g. caused by adding or removing an implement) until the tractor is actually moving.

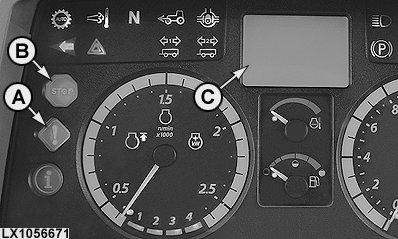

If a fault occurs in the control system, a yellow CAUTION light (A) or a red STOP light (B) will come on and the relevant information for the operator will appear on the digital display (C). Review the error message on the digital display and eliminate the cause.

If the yellow CAUTION light (A) glows, the tractor can still be driven, but take care at high speeds!

If the red STOP light (B) glows, stop the tractor immediately and shut off the engine! Review the error message on the digital display and eliminate the cause.
