AutoQuad Plus Transmission — Settings

LX1056690-UN-04JUL12

LX1056692-UN-09JUL12

Transmission Page, Forward/Reverse Ratio

LX1056691-UN-09JUL12

Transmission Page, Settings

1 - Confirm Button

2 - Up Arrow Button

3 - Down Arrow Button

4 - Menu Button

A - Box for Forward/Reverse Ratio

B - Softshift Check Box

C - PTO Operation Check Box

D - Speed Matching Check Box

A — Select the forward/reverse ratio

The ratio can be varied between +3 and -3; this can be done at the digital display.

To do this, press menu button (4) until the transmission menu page appears.

Press confirm button (1) and select the desired ratio in box (A) using arrow button (2) or (3).

Save selection using the confirm button.

To exit press menu button (4).

NOTE: When automatic gear shifting is activated, a set maximum gear takes priority over the selected relationship.

B — Softshift when changing gears

If this option is activated, engine speed is matched temporarily by the electronics to achieve a smoother shift.

Activate or deactivate softshift (B) as follows:

To do this, press menu button (4) until the transmission menu page appears. Press arrow button (3) and then press confirm button (1). Activate or deactivate check box (B) using arrow buttons (2) or (3). Save selection using the confirm button.

If desired, activate or deactivate PTO operation (C) as follows:

Press confirm button (1) and activate or deactivate check box (C) using arrow buttons (2) or (3). Save selection using the confirm button.

To exit press menu button (4).

Engine speed can then be matched in the following ways:

• Switched off all the time, if (B) is not activated
• Switched on, but off for PTO operation if only (B) is activated
• Switched on all the time, if (B) and (C) are activated

D — Speed matching when changing ranges

If this option is activated, when changing ranges at travel speeds at or above approx. 7 km/h (4.4 mph), the transmission is automatically shifted into a gear that matches the travel speed. This automatic function can be overridden by pressing a gear shift switch during the change of range.

Activate or deactivate speed matching (D) as follows:

To do this, press menu button (4) until the transmission menu page appears. Press arrow button (3) and select check box (D) using confirm button (1). Activate or deactivate check box (D) using arrow button (2) or (3). Save selection using the confirm button.

To exit press menu button (4).

E — Cruise control potentiometer

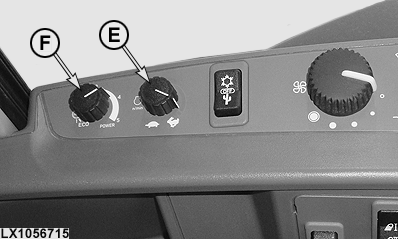

LX1056715-UN-13JUL12

E - Cruise Control Potentiometer

F - Automatic Gear Shifting Potentiometer

In the lowest setting, engine speed is limited to 1050 rpm. In the highest setting, the engine can run at maximum speed. Individual engine speed limits can be set between these two positions. If no PTO operation is taking place, potentiometer (E) should be in its maximum speed position or in the “Off” position.

F — Automatic gear shifting potentiometer

Different operating modes can be set with potentiometer (F).

IMPORTANT: “Eco mode” is suitable ONLY for light work in the field and for driving on roads when the load being pulled is not heavy.

Eco mode: Hand throttle / accelerator pedal more than 85% towards top speed and engine running at above 1872 rpm: Transmission shifts up.
Hand/Foot throttle more than 55% towards top speed and engine running at under 1300 rpm: Transmission shifts down.
Hand/Foot throttle less than 55% towards top speed and engine running at under 1100 rpm: Transmission shifts down.

Power mode: Hand/Foot throttle more than 85% towards top speed and engine running at under 2280 rpm: Transmission shifts up.
Hand/Foot throttle more than 55% towards top speed and engine running at under 1720 rpm: Transmission shifts down.
Hand/Foot throttle less than 55% towards top speed and engine running at under 1100 rpm: Transmission shifts down.

Intermediate settings: The engine speeds at which the transmission shifts can be customized with potentiometer (F) to change the shift point to an intermediate level between Eco mode and Power mode.
