Lights (Tractors with Cab)

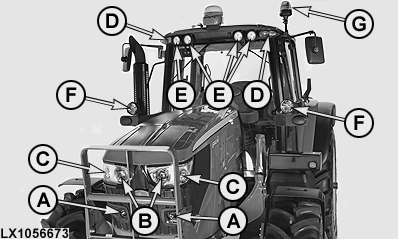

LX1056673-UN-05JUL12

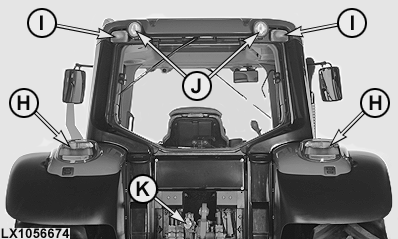

LX1056674-UN-04JUL12

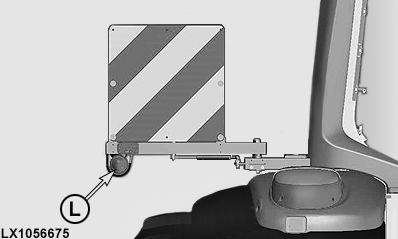

LX1056675-UN-04JUL12

A	Headlights, Low Beam (on Both Sides of Engine Hood)
B	Headlights, High Beam (on Both Sides of Engine Hood)
C	Worklights1 (on Both Sides of Engine Hood)
D	Turn Signal Lights (on Front of Roof, Both Sides)
E	Worklights1 (on Both Sides of Roof, Side-Facing)
F	Additional Headlight1 (Low Beam and High Beam) or Worklight1 (on Both Sides of Cab Frame)
G	Beacon Light1
H	Tail Lights/Brake Lights (on Rear of Fenders, Both Sides)
I	Turn Signal Lights (on Rear of Roof, Both Sides)
J	Worklights1 (on Rear of Roof, Both Sides)
K	Seven-Terminal Trailer Socket for Lights
L	Extra-Wide Vehicle Lighting1, Both Sides (Hazard Warning Light)

NOTE: H9 bulbs must NOT be used in front corner worklights (C).
