Lights (Tractors without Cab)

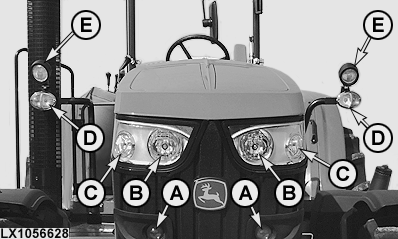

LX1056628
LX1056628-UN-26SEP12

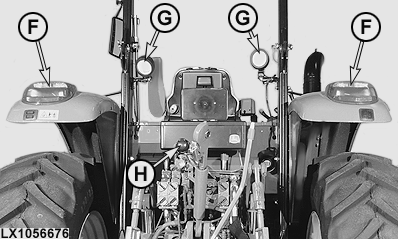

LX1056676
LX1056676-UN-04JUL12


A

Headlights, Low Beam (on Both Sides of Engine Hood)

B

Headlights, High Beam (on Both Sides of Engine Hood)

C

Worklights1 (on Both Sides of Engine Hood)

D

Turn Signal Lights (on Both Sides of Operator's Station)

E

Additional Headlight1 (Low Beam and High Beam) or Worklight1 (on Both Sides of Operator's Station)

F

Tail Lights/Brake Lights (on Rear of Fenders, Both Sides)

GI

Worklights1 (on Rear of ROPS, Both Sides)

H

Seven-Terminal Trailer Socket for Lights

NOTE: H9 bulbs must NOT be used in front corner worklights (C).

1 if equipped
