iTEC™ Basic - Operating the Intelligent Total Equipment Control

LX1056918-UN-28FEB13

LX1056694-UN-10JUL12

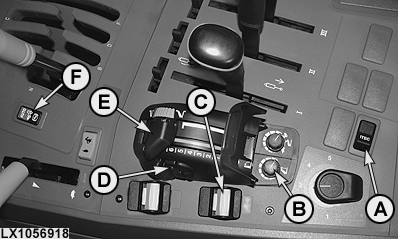

A - iTEC™ Switch

B - Height-Limit Control

C - Rear PTO Switch

D - Raise/Lower Switch

E - Depth Control

F - Front-Wheel Drive Switch

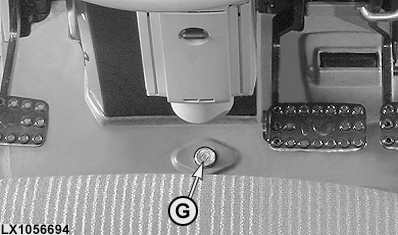

G - Differential Lock

By means of iTEC™ Basic, differential lock (G), front-wheel drive (F) (in Auto position only), and rear PTO (C) can be individually or simultaneously engaged or disengaged automatically by operating raise/lower switch (D).

Engage differential lock (G), front-wheel drive (F) (in Auto position only) and/or rear PTO (C) as needed (the indicator lights are on continuously). Activate iTEC™ Basic by pressing iTEC™ switch (A). An acoustic signal sounds and the indicator lights start to flash quickly (on for longer, off briefly).

NOTE: If a function is to be integrated in or removed from iTEC™ Basic later on, switch iTEC™ Basic off and reactivate with all desired functions.

Before turning at the headland, the implement is raised by means of raise/lower switch (D). The differential lock cuts out immediately, the rear PTO and the front-wheel drive when the implement has reached its transport position. The indicator lights go from flashing quickly to flashing slowly (on briefly, off for longer). If the implement is raised by means of the depth control, iTEC™ Basic will not react.

NOTE: If the maximum lifting height is set to a lower value by means of height-limit control (B), the rear PTO will be disengaged earlier.

When subsequently lowering the implement, the differential lock and front-wheel drive immediately reengage; the rear PTO is not activated unless the implement has reached its operating position (the indicator lights will go from flashing slowly to flashing quickly).

IMPORTANT: When lowering the implement, functions can only be activated at a travel speed of at least 0.5 km/h (0.31 mph).

If iTEC™ Basic is turned off by means of switch (A) all automatic functions will be canceled (an acoustic alarm sounds and the indicator lights go from flashing quickly to continuous illumination or they go out completely).

NOTE: Front-wheel drive (F) can be set for continuous operation at any time, regardless of iTEC™ Basic (e.g. for turning at the end of steep, wet fields). If the front-wheel drive switch is reset to the Auto position, the front-wheel drive function is integrated in iTEC™ Basic again.
