Hitch - Adjust the Rate of Lift

LX1056690-UN-04JUL12

LX1056695-UN-10JUL12

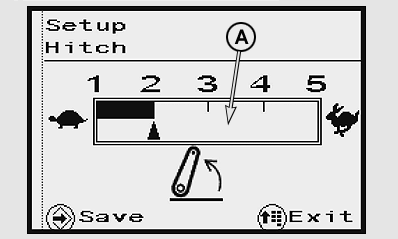

The rate at which mounted implements are raised can be set via the digital display.

To do this, press menu button (4) until the page for raise rate appears.

Press confirm button (1) and select the desired raise rate in box (A) using arrow button (2) or (3).

Save selection using confirm button (1).

To exit press menu button (4).

Rate of lift is determined by this setting.
