Select Standard Speed of Rear PTO

LX1056699-UN-05SEP12

LX1056888-UN-08JUL13

LX1056706-UN-11JUL12

Speed with PTO Engaged

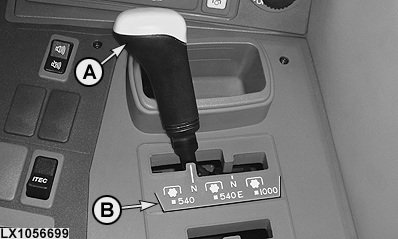

A - PTO Speed Lever

B - Decal with Shift Pattern for PTO Speed

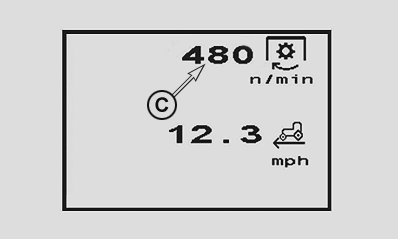

C - Speed with PTO Disengaged

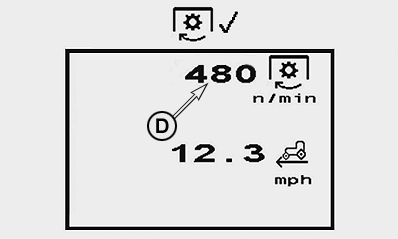

D - Speed with PTO Engaged

CAUTION: Before engaging PTO, make sure that selected PTO speed of the tractor is correct for attached implement. Incorrect speed could result in severe damage to the implement.

Danger of accidents!

The PTO is engaged and disengaged as described under Operating PTOs. The PTO has to be disengaged in order to select the standard speed.

PTO speed is selected by means of lever (A) as shown on decal (B). With the lever in the position(s) "N", the PTO shaft can be turned by hand to facilitate u.j. shaft connection.

The selected PTO speed is displayed in field (C) or (D) on the digital display.

CAUTION: Engine must be shut off when an implement is being connected.
