Hitch - Load/Depth Adjustment

LX1056700-UN-11JUL12

A - Load/Depth Control

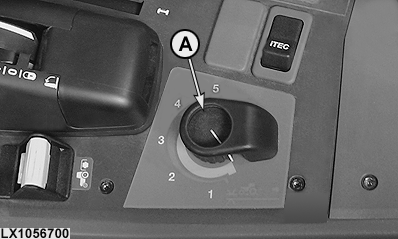

The hitch can be set between load control and depth control with control (A).

The positions have the following meanings:

• 0 = Depth control

• over 0 but less than 5 = Mixed control

• 5 = Max. load control

CAUTION: Before connecting implements to the three-point hitch, position 0 (depth control) must be selected to prevent unintentional raising or lowering of the hitch.

0 depth control

LX1049976-UN-17MAY11

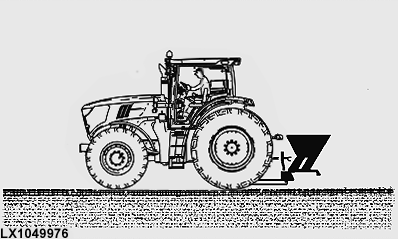

With load/depth control in this position, the implement is held at the selected position.

Over 0 but less than 5 mixed control

LX1049977-UN-18MAY11

The intermediate positions of the load/depth control allow the effects of depth control and/or load control to be infinitely varied as the ground conditions require.

5 max. load control

LX1049978-UN-17MAY11

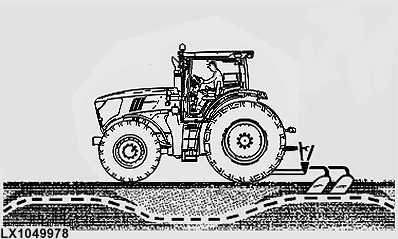

With load/depth control in this position, the implement is raised as resistance (soil density) increases and lowered as resistance decreases.
