Center Link

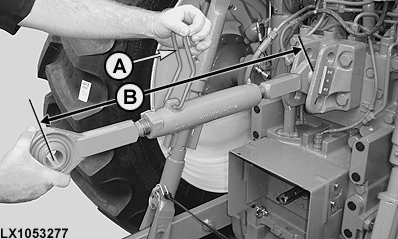

LX1053277-UN-21SEP11

IMPORTANT: Before using, make sure that a raised implement will not make contact with the tractor. In this case, pay attention to the settings for center link length and maximum lifting height.

Length of center link can be adjusted using the adjusting handle. Lift adjusting handle (A) and turn it until the required length is achieved.

• Minimum length 530 mm (20.9 in.)
• Maximum length 725 mm (28.5 in.)

Do not deviate from the specified dimensions. Grooves in the thread indicate the maximum permitted setting. The threads must not be unscrewed any further out of the receiver. After adjusting, push handle down again over center link. Insert attaching pin through implement mast and center link, and secure.
