Levers for Mechanical Selective Control Valves

LX1056707-UN-05SEP12

LX1056708-UN-12JUL12

LX1046218-UN-22JUN11

A - Retract

B - Extend

C - Neutral Position

D - Float Position

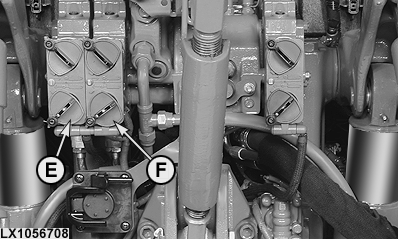

E - Selective Control Valve I

F - Selective Control Valve II

G - Shut-Off Valve

H - Front Hitch

I - Front Coupler

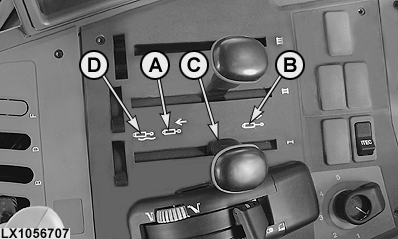

The control lever has four settings.

(A) — In retract position, the control cylinder retracts.

(B) — In extend position, the control cylinder extends.

(C) — In neutral position, the control cylinder is held in position.

(D) — In float position (piston moves freely inside control cylinder), the mounted implement follows the ground contours.

NOTE: If additional external valves are used, move the control lever to neutral when shutting off each hydraulic function.

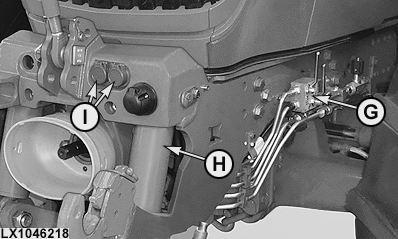

CAUTION: Danger of accidents when a front hitch and front couplers are installed!

Make sure that selective control valves I and II cannot be used for two applications.

Use of selective control valve I:

• When using selective control valve I (E), make sure that shut-off valve (G) is closed.
• When using front hitch (H), make sure that the shut-off valve is open and no other implement is connected to selective control valve I.

Use of selective control valve II:

• When using selective control valve II (F), make sure that no other implement is connected to front couplers (I).
• When using front couplers (I), make sure that no other implement is connected to selective control valve II (F).
