Selective Control Valves - Couplers

LX1056710-UN-12JUL12

CAUTION: The hydraulic system has a maximum stand-by pressure of 20000 kPa (200 bar; 2900 psi). For your own protection and to assure proper functioning of the system, use only genuine John Deere parts.

Couplers allow hydraulic hoses to be coupled or uncoupled without loss of oil, even under pressure.

If a malfunction or accident causes the hose to break loose from the coupler, the oil flow through the coupler is stopped immediately.

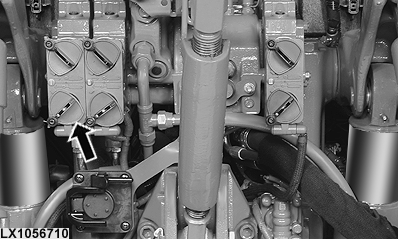

To connect the hose union, press it firmly into the coupler.

NOTE: When connecting, comply with the symbols on the couplers.

To disconnect the hose, give it a firm pull.
