Access to Fuses

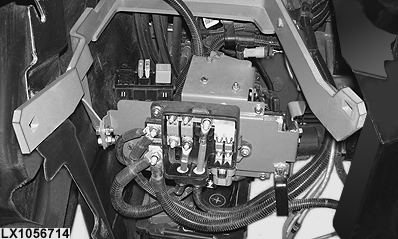

LX1056714-UN-12JUL12

Fuse Box behind Access Step (PLB)

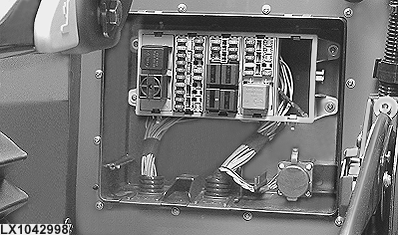

LX1042998-UN-10JUL07

Fuses for Tractors without Cab (LCS)

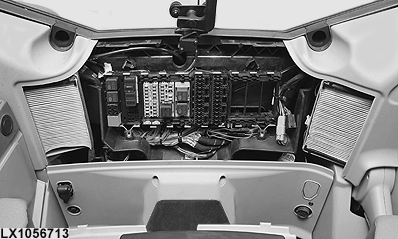

LX1056713-UN-12JUL12

Fuses for Tractors with Cab (LCS)

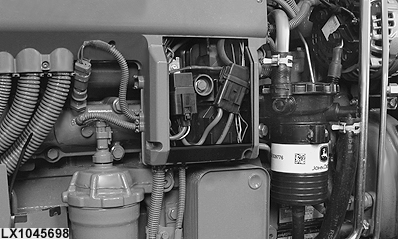

LX1045698-UN-22NOV10

Fuse Box at Engine

The fuse and relay box of the Load Center Secondary (LCS) circuit is located behind the operator's seat.

The fuses and relays of the Power Link Box (PLB) are located behind the right access step.

The fuse and relay of the electrical starting aid are located on the right side of the engine.
