Hitch - Float Position

LX1056746-UN-05SEP12

LX1049979-UN-18MAY11

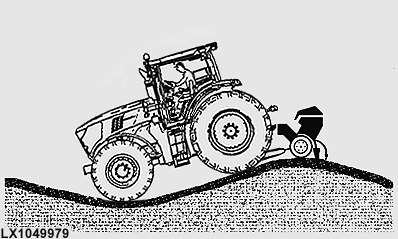

In float position (for implements with gauge wheel), implement can move freely up and down to follow ground contours independently of the tractor.

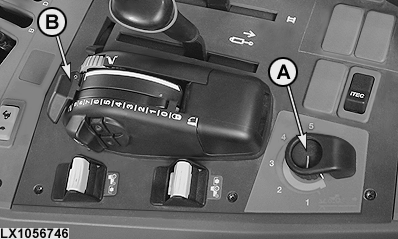

To obtain a "floating" action, set load/depth control (A) to 1 and move hitch control (B) as far as it will go to the front.
