Hitch - Direct Control

LX1056725-UN-19JUL12

TS229-UN-23AUG88

CAUTION: Direct actuation of hitch must be performed ONLY while sitting on the operator's seat.

In the event of an electrical failure, the hitch can be actuated as follows:

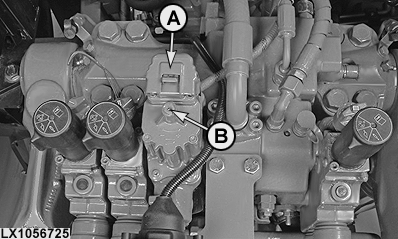

Pull out connector (A).

Run the engine. Take off the protective cap.

From the operator's seat, turn screw (B) with a 3 mm (0.12 in.) hex. socket wrench until the three-point hitch is in the desired position.

See your John Deere dealer.
