Back-Up Alarm (Optional Equipment)

LX1056741-UN-07SEP12

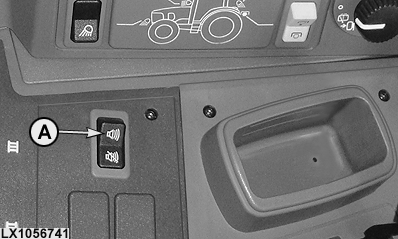

If the tractor is equipped with this option and the back-up alarm is activated at switch (A), an alarm signal is triggered whenever the reverser lever is set to reverse travel position.

Use switch (A) to activate or deactivate the back-up alarm.
