Hitch Remote Control

LX1042709-UN-04JUL07

LX1056743-UN-03AUG12

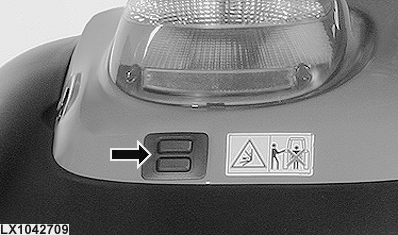

This switch allows the hitch to be operated from the fender. For safety reasons, the hitch rises and drops at a slower rate. The height and depth values are ignored.

Push upper switch - Raise implement

Push lower switch - Lower implement

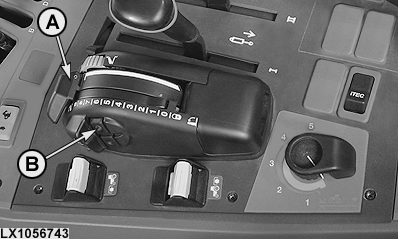

NOTE: Once the fender control has been activated, the hitch is prevented from moving accidentally. To prepare the hitch for operation again, either:

• move hitch control (A) to the position that corresponds to the position of the draft links,
• move hitch control (A) to one of the end positions, or
• actuate raise/lower switch (B).
