Hitch - Adjust Working Depth

LX1056919-UN-28FEB13

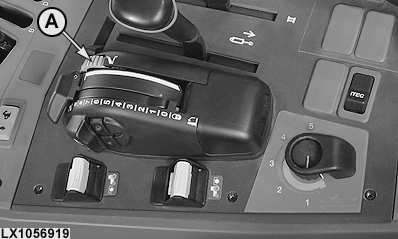

Push down hitch control stop (A) and set the desired working depth.

After lifting the implement, the same working depth will be selected the next time the implement is lowered. This depth is indicated by resistance at hitch control (B).
