Fuses and Relays (LCS) - Tractors without Cab

General information

LX1058142-UN-14SEP12

LX1058143-UN-14SEP12

IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one stated in the table.

IMPORTANT: Some fuse positions are vacant when the tractor is delivered; these must be left vacant until the appropriate options are retro-fitted.

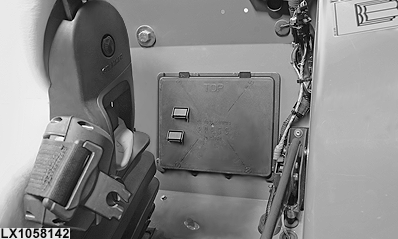

The fuse and relay box of the Load Center Secondary circuit is located on the left behind the operator's seat in the rear wall of the open operator's station.

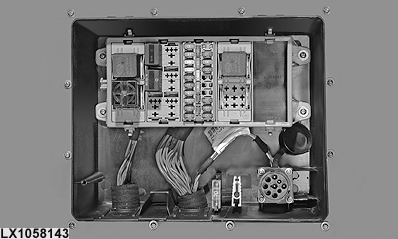

Take the cover off the fuse and relay box.

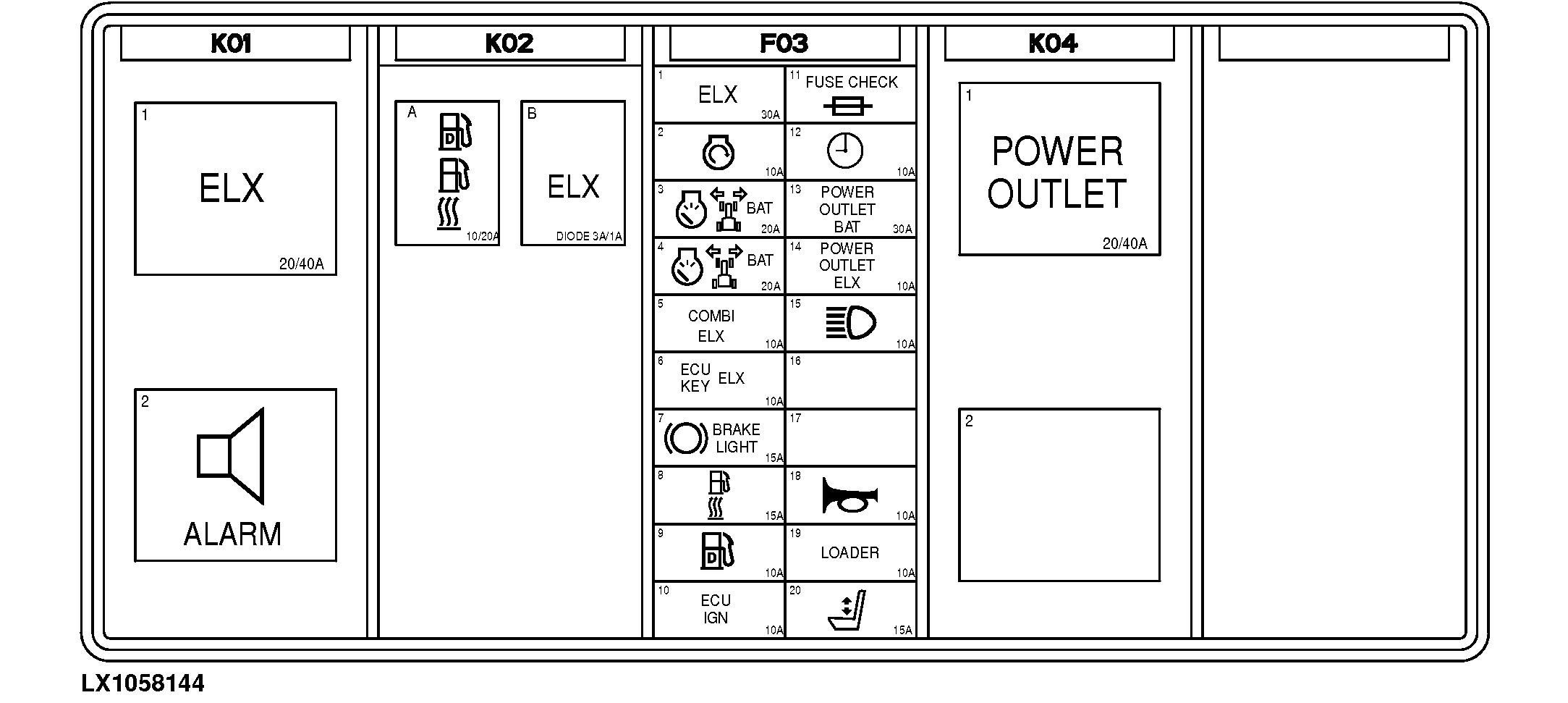

Summary of fuse and relay box (LCS)

LX1058144-UN-11SEP12

Fuses and relays (LCS)

Fuse no.	Capacity (amps)	Consumer	Fuse no.	Capacity (amps)	Consumer
F03LCS/01	30 amps	Power supply for electronics	F03LCS/11	——	Fuse tester
F03LCS/02	10 amps	Key switch	F03LCS/12	10 amps	Clock (instrument unit)
F03LCS/03	20 amps	Instrument unit, warning light	F03LCS/13	30 amps	3-terminal power outlet socket
F03LCS/04	20 amps	Instrument unit, immobilizer control unit	F03LCS/14	30 amps 10 amps	3-terminal socket, 7-terminal socket (SAE) 3-terminal power outlet socket (ECE)
F03LCS/05	10 amps	Main control unit	F03LCS/15	10 amps	Lights
F03LCS/06	10 amps	Engine control unit, immobilizer control unit	F03LCS/16	—	Not used
F03LCS/07	15 amps	Brake pedal sensor unit	F03LCS/17	—	Not used
F03LCS/08	15 amps	Fuel preheater	F03LCS/18	10 amps	Horn
F03LCS/09	10 amps	Fuel pump	F03LCS/19	10 amps	Connector for front loader (X037-1F)
F03LCS/10	10 amps	Engine control unit	F03PLB/20	15 amps	Operator's seat
Relay no.	Capacity (amps)	Designation	Relay no.	Capacity (amps)	Designation
K01LCS/1	20/40 amps	Relay for power supply to electronics (ELX)	K02LCS/A	10/20 amps	Relay for fuel pump and fuel preheater
K01LCS/2	—	Acoustic alarm, component information	K02LCS/B	1 amp	Diode for power supply to electronics
K04LCS/1	20/40 amps	Relay for 3-terminal socket	K02LCS/B	3 amps	Diode for acoustic alarm
K04LCS/2	—	Not used
