Fuses and Relays (LCS) and (FRM), General Information - Tractors with Cab

General information

LX1058125-UN-06SEP12

LX1058126-UN-06SEP12

Fuse and Relay Box (LCS) or (FRM)

IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one stated in the table.

IMPORTANT: Some fuse positions are vacant when the tractor is delivered; these must be left vacant until the appropriate options are retro-fitted.

NOTE: Depending on how the tractor is equipped, it may not have all the fuses and relays shown below.

The fuse box of the FRa Me circuit (FRM) is located within the frame of fuse and relay box (LCS) behind the operator's seat and just below cab rear window.

Remove cover of fuse and relay box (LCS).

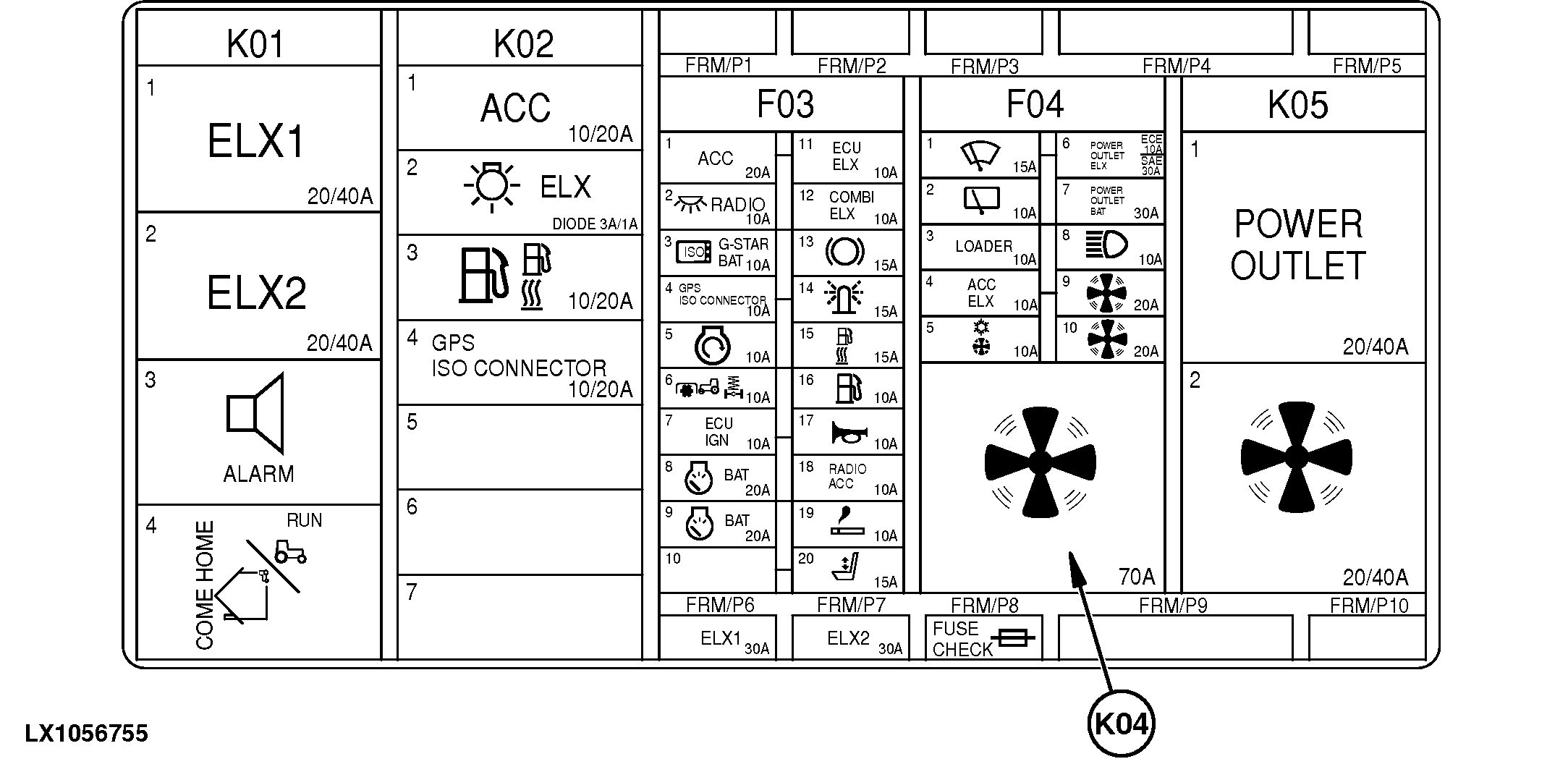

Summary — Fuses and relays (LCS) and (FRM)

LX1056755-UN-27SEP12
