Fuse and Relay of Electrical Starting Aid

LX1050892-UN-23NOV10

LX1050893-UN-23NOV10

IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one stated in the table.

IMPORTANT: Some fuse positions are vacant when the tractor is delivered; these must be left vacant until the appropriate options are retro-fitted.

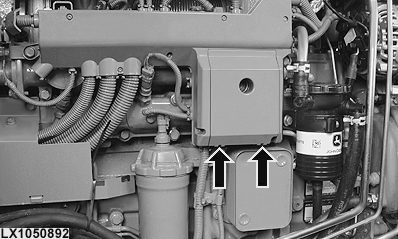

Fuse (F30) and relay (K046/K067) are located under a cover on the right side of the engine.

Open the hood.

Disengage the catches and lift off the cover.

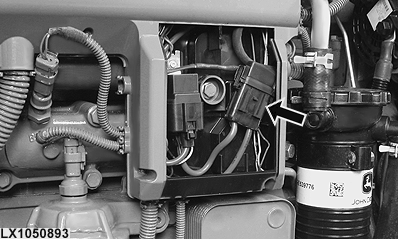

Check the 70-amp fuse (F30) and the relay (K046/K067), and replace with new ones if necessary.

Put on the cover and close the hood.
