Adjustable Front Axle without Front-Wheel Drive - Tighten Axle Bolts and Wheels Bolts

LX1056762-UN-19OCT12

Adjustable Front Axle

LX1056756-UN-01OCT12

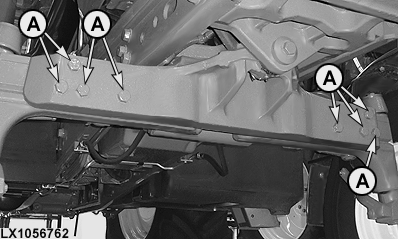

A - Bolts of Adjustable Front Axle without Front-Wheel Drive

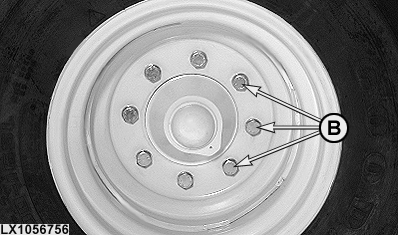

B - Standard Axle Disk-to-Hub Bolts

CAUTION: Avoid injury. Never operate tractor with loose wheel bolts or axle components. Wheel bolts are critical and require retightening. Install wheels and ballast so periodic checking of tightness can be done easily.

Tighten screws to specified torque.

Axle bolt torques:

Standard Adjustable Axle Bolts (A) 400 Nm (300 lb.-ft.)

Torque for wheel bolts on front axles without front-wheel drive:

Standard Axle Disk-to-Hub Bolts (B) 250 Nm (185 lb.-ft.)

Drive tractor 100 meters (100 yd), and retighten bolts to specified torque.

Retighten bolts after working 3 HOURS and again after 10 HOURS.
