Front Axle - Adjust Steering Stop (on 6140M Tractor)

IMPORTANT:

LX1053443-UN-23MAY12

IMPORTANT: If equipped, fenders may deflect against main frame, grille screen or hood during full turn and simultaneous axle oscillation.

A narrower turn radius may be obtained by utilizing a shorter stop position.

1. Adjust fenders (if equipped) and tread settings before setting steering stop positions.

2. Select the correct steering stop position for the tire size and tread width. See tables below.

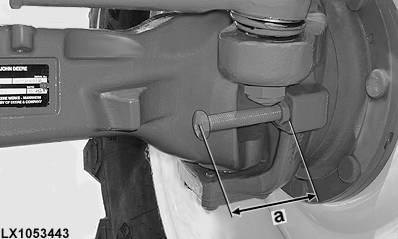

3. Measure the length of screw (a) as shown; this will bring the steering stops to their correct position.

4. Tighten the steering stop retaining nuts to the specified torque.

   Item	Measurement	Specification
   Steering Stop Retaining Nuts	Torque	250 N·m (185 lb.-ft.)

5. Turn wheel fully to the right. Impact the knuckle housing against the steering stop five times. Repeat on the left side.

6. Tighten the steering stop retaining nuts to the specified torque once again.

7. Turn steering wheel fully to the left and then fully to the right to check clearance.

   IMPORTANT: Settings listed are approximate, due to variations in tire size. Steering stops are adjusted properly if the tires leave 20 mm (0.79 in.) clearance with regard to the frame and side of the tractor when the axle is oscillated to its full extent.

Steering stops for tractor 6140M

Steering stop positions — 6140M
Tire size	Tread width		Length of screw (a)
	[mm]	[in.]	[mm]	[in.]
480/65R24	1715	67.5	26	1.0
	1819 *	71.6 *	20	0.8
	1911	75.2	20	0.8
	2023	79.6	20	0.8
	2115	83.3	20	0.8
420/70R24	1715	67.5	20	0.8
	1819 *	71.6 *	20	0.8
	1911	75.2	20	0.8
	2023	79.6	20	0.8
	2115	83.3	20	0.8
320/85R28	1623	63.9	23	0.9
	1715	67.5	20	0.8
	1819 *	71.6 *	20	0.8
	1911	75.2	20	0.8
	2023	79.6	20	0.8
	2115	83.3	20	0.8
380/85R24	1623	63.9	34	1.3
	1715	67.5	20	0.8
	1819 *	71.6 *	20	0.8
	1911	75.2	20	0.8
	2023	79.6	20	0.8
	2115	83.3	20	0.8
340/85R28	1714	67.5	20	0.8
	1818 *	71.6 *	20	0.8
	1910	75.2	20	0.8
	2022	79.6	20	0.8
	2114	83.2	20	0.8
380/70R28	1714	67.5	20	0.8
	1818 *	71.6 *	20	0.8
	1910	75.2	20	0.8
	2022	79.6	20	0.8
	2114	83.2	20	0.8
540/65R24	1818 *	71.6 *	34	1.3
	1910	75.2	20	0.8
	2022	79.6	20	0.8
	2114	83.2	20	0.8
480/70R24	1714	67.5	41	1.6
	1818 *	71.6 *	20	0.8
	1910	75.2	20	0.8
	2022	79.6	20	0.8
	2114	83.2	20	0.8
420/85R24	1714	67.5	35	1.4
	1818 *	71.6 *	25	1.0
	1910	75.2	20	0.8
	2022	79.6	20	0.8
	2114	83.2	20	0.8
VF 520/60R28	1815	71.5	20	0.8
480/65R28	1713	67.5	52	2.1
	1817 *	71.5 *	27	1.1
	1909	75.2	24	0.9
	2021	79.6	20	0.8
	2113	83.2	20	0.8
420/70R28	1713	67.5	30	1.2
	1817 *	71.5 *	20	0.8
	1909	75.2	20	0.8
	2021	79.6	20	0.8
	2113	83.2	20	0.8
380/85R28	1621	63.8	58	2.3
	1713	67.5	34	1.3
	1817 *	71.5 *	20	0.8
	1909	75.2	20	0.8
	2021	79.6	20	0.8
	2113	83.2	20	0.8
480/70R28	1620	63.8	85	3.4
	1712	67.4	62	2.4
	1816 *	71.5 *	35	1.4
	1908	75.1	28	1.1
	2020	79.5	20	0.8
	2112	83.2	20	0.8
320/85R34	1594	62.8	59	2.3
	1696	66.8	35	1.4
	1798 *	70.8 *	24	0.9
	1900	74.8	20	0.8
	2000	78.8	20	0.8
	2102	82.8	20	0.8
380/85R30	1594	62.8	72	2.8
	1696	66.8	47	1.8
	1798 *	70.8 *	29	1.1
	1900	74.8	22	0.9
	2000	78.8	20	0.8
	2102	82.8	—	—
540/65R28	1712	67.4	80	3.1
	1816 *	71.5 *	55	2.2
	1908	75.1	34	1.3
	2020	79.5	24	0.9
	2112	83.2	20	0.8
440/80R28	1712	67.4	59	2.3
	1816 *	71.5 *	35	1.4
	1908	75.1	32	1.3
	2020	79.5	20	0.8
	2112	83.2	20	0.8
420/85R28	1712	67.4	56	2.2
	1816 *	71.5 *	34	1.3
	1908	75.1	35	1.4
	2020	79.5	20	0.8
	2112	83.2	20	0.8
VF 600/60R28	1904	75.0	49	1.9
16.9R28/R2	1594	62.7	91	3.6
	1696	66.8	71	2.8
	1798 *	70.8 *	46	1.8
	1900	74.8	32	1.3
	2000	78.7	22	0.9
	2102	82.7	20	0.8
* Tread width setting on delivery. This is the only tread width that permits front-loader operation.
