Front-Wheel Tread Adjustment with Rims for 2 Positions - 6140M Tractor

LX1053400-UN-07MAR12

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 2 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

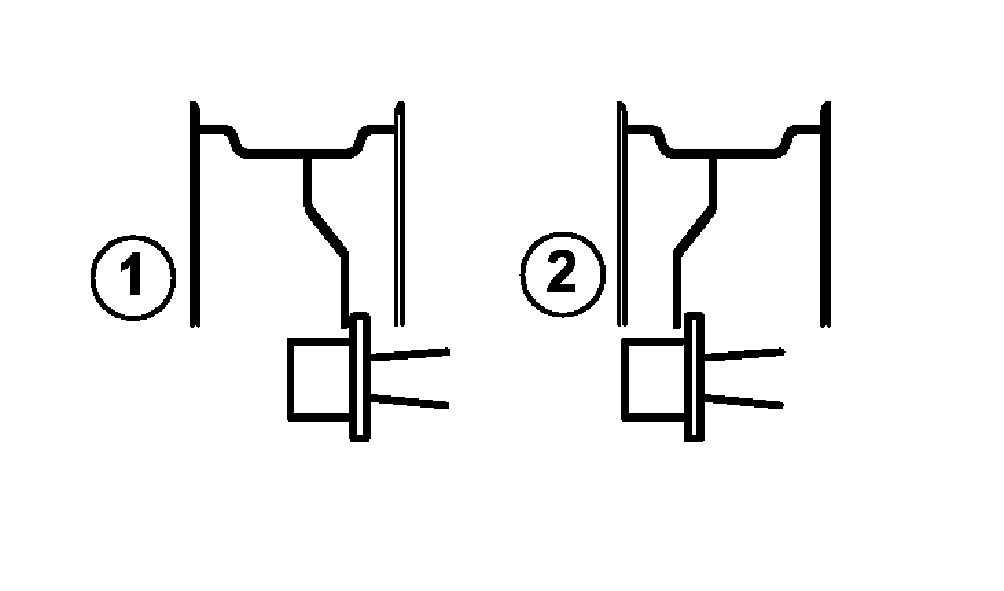

	Tread width setting on delivery	Tread width setting (front wheels) Arrangement of rim and wheel dish				Tread width setting on delivery	Tread width setting (front wheels) Arrangement of rim and wheel dish
Tires:		1	2		Tires:		1	2
13.6R28	1816 mm	1816 mm	1724 mm		420/70R28	1816 mm	1816 mm	1724 mm
	(71.50 in.)	(71.50 in.)	(67.87 in.)			(71.50 in.)	(71.50 in.)	(67.87 in.)
14.9R24	1818 mm	1818 mm	1722 mm		420/85R24	1816 mm	1816 mm	1720 mm
	(71.57 in.)	(71.57 in.)	(67.80 in.)			(71.50 in.)	(71.50 in.)	(67.72 in.)
14.9R28	1816 mm	1816 mm	1724 mm		420/85R28 -R2	1814 mm	1814 mm	1722 mm
	(71.50 in.)	(71.50 in.)	(67.87 in.)			(71.42 in.)	(71.42 in.)	(67.80 in.)
16.9R24	1816 mm	1816 mm	1720 mm		440/80R24 -R4	1816 mm	1816 mm	1720 mm
	(71.50 in.)	(71.50 in.)	(67.72 in.)			(71.50 in.)	(71.50 in.)	(67.72 in.)
16.9R28	1814 mm	1814 mm	1722 mm		440/80R28 -R4	1814 mm	1814 mm	1722 mm
	(71.42 in.)	(71.42 in.)	(67.80 in.)			(71.42 in.)	(71.42 in.)	(67.80 in.)
340/85R28	1816 mm	1816 mm	1724 mm		480/65R24	1818 mm	1818 mm	1722 mm
	(71.50 in.)	(71.50 in.)	(67.87 in.)			(71.57 in.)	(71.57 in.)	(67.80 in.)
380/70R28	1816 mm	1816 mm	1724 mm		480/65R28	1816 mm	1816 mm	1724 mm
	(71.50 in.)	(71.50 in.)	(67.87 in.)			(71.50 in.)	(71.50 in.)	(67.87 in.)
380/85R24	1818 mm	1818 mm	1722 mm		480/70R24	1816 mm	1816 mm	1720 mm
	(71.57 in.)	(71.57 in.)	(67.80 in.)			(71.50 in.)	(71.50 in.)	(67.72 in.)
380/85R28	1816 mm	1816 mm	1724 mm		480/70R28	1814 mm	1814 mm	1722 mm
	(71.50 in.)	(71.50 in.)	(67.87 in.)			(71.42 in.)	(71.42 in.)	(67.80 in.)
400/80R28 -R4	1816 mm	1816 mm	1724 mm		540/65R24	1816 mm	1816 mm	1720 mm
	(71.50 in.)	(71.50 in.)	(67.87 in.)			(71.50 in.)	(71.50 in.)	(67.72 in.)
420/70R24	1818 mm	1818 mm	1722 mm		540/65R28	1814 mm	1814 mm	1722 mm
	(71.57 in.)	(71.57 in.)	(67.80 in.)			(71.42 in.)	(71.42 in.)	(67.80 in.)
