Front-Wheel Tread Adjustment with Rims for 16 Positions - 6140M Tractor

Front-Wheel Tread Adjustment with Rims for 16 Positions / Positions 1 to 8

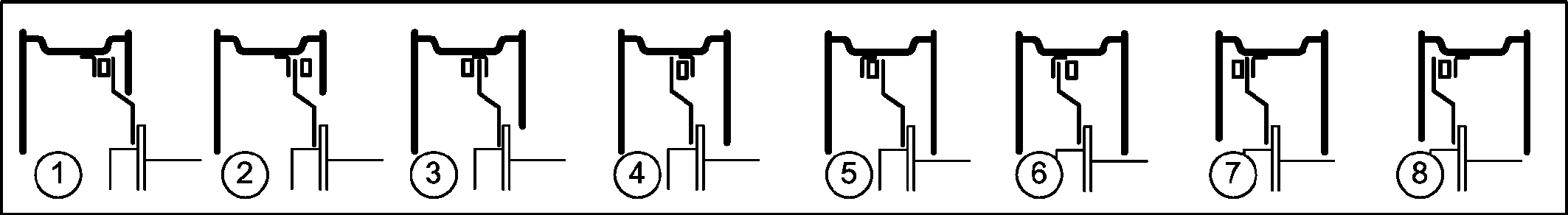

LX1053419-UN-16MAR12

Front-Wheel Tread Adjustment with Rims for 16 Positions / Positions 1 to 8

	Tread width setting on delivery	Tread width setting (front wheels) Arrangement of rim and wheel dish
Tires:		1	2	3	4	5	6	7	8
12.4R28	1820 mm	2120 mm	2090 mm	2054 mm	2024 mm	1916 mm	1886 mm	1850 mm	1820 mm
	(71.65 in.)	(83.46 in.)	(82.28 in.)	(80.87 in.)	(79.68 in.)	(75.43 in.)	(74.25 in.)	(72.83 in.)	(71.65 in.)
13.6R28	1818 mm	2118 mm	2088 mm	2052 mm	2022 mm	1914 mm	1884 mm	1848 mm	1818 mm
	(71.57 in.)	(83.39 in.)	(82.20 in.)	(80.79 in.)	(79.61 in.)	(75.35 in.)	(74.17 in.)	(72.76 in.)	(71.57 in.)
14.9R24	1820 mm	2120 mm**	2090 mm	2054 mm	2024 mm	1916 mm	1886 mm	1850 mm	1820 mm
	(71.65 in.)	(83.46 in.)**	(82.28 in.)	(80.87 in.)	(79.68 in.)	(75.43 in.)	(74.25 in.)	(72.83 in.)	(71.65 in.)
14.9R28	1818 mm	2118 mm**	2088 mm	2052 mm	2022 mm	1914 mm	1884 mm	1848 mm	1818 mm
	(71.57 in.)	(83.39 in.)**	(82.20 in.)	(80.79 in.)	(79.61 in.)	(75.35 in.)	(74.17 in.)	(72.76 in.)	(71.57 in.)
16.9R24	1818 mm	2118 mm**	2088 mm**	2052 mm**	2022 mm	1914 mm	1884 mm	1848 mm	1818 mm
	(71.57 in.)	(83.39 in.)**	(82.20 in.)**	(80.79 in.)**	(79.61 in.)	(75.35 in.)	(74.17 in.)	(72.76 in.)	(71.57 in.)
16.9R28	1816 mm	2112 mm**	2082 mm**	2050 mm**	2020 mm	1908 mm	1878 mm	1846 mm	1816 mm
	(71.50 in.)	(83.15 in.)**	(81.97 in.)**	(80.71 in.)**	(79.53 in.)	(75.12 in.)	(73.94 in.)	(72.68 in.)	(71.50 in.)
320/85R28	1820 mm	2120 mm	2090 mm	2054 mm	2024 mm	1916 mm	1886 mm	1850 mm	1820 mm
	(71.65 in.)	(83.46 in.)	(82.28 in.)	(80.87 in.)	(79.68 in.)	(75.43 in.)	(74.25 in.)	(72.83 in.)	(71.65 in.)
340/85R28	1818 mm	2118 mm	2088 mm	2052 mm	2022 mm	1914 mm	1884 mm	1848 mm	1818 mm
	(71.57 in.)	(83.39 in.)	(82.20 in.)	(80.79 in.)	(79.61 in.)	(75.35 in.)	(74.17 in.)	(72.76 in.)	(71.57 in.)
380/70R28	1818 mm	2118 mm**	2088 mm	2052 mm	2022 mm	1914 mm	1884 mm	1848 mm	1818 mm
	(71.57 in.)	(83.39 in.)**	(82.20 in.)	(80.79 in.)	(79.61 in.)	(75.35 in.)	(74.17 in.)	(72.76 in.)	(71.57 in.)
380/85R24	1820 mm	2120 mm**	2090 mm	2054 mm	2024 mm	1916 mm	1886 mm	1850 mm	1820 mm
	(71.65 in.)	(83.46 in.)**	(82.28 in.)	(80.87 in.)	(79.68 in.)	(75.43 in.)	(74.25 in.)	(72.83 in.)	(71.65 in.)
380/85R28	1818 mm	2118 mm**	2088 mm	2052 mm	2022 mm	1914 mm	1884 mm	1848 mm	1818 mm
	(71.57 in.)	(83.39 in.)**	(82.20 in.)	(80.79 in.)	(79.61 in.)	(75.35 in.)	(74.17 in.)	(72.76 in.)	(71.57 in.)
420/70R24	1820 mm	2120 mm**	2090 mm**	2054 mm	2024 mm	1916 mm	1886 mm	1850 mm	1820 mm
	(71.65 in.)	(83.46 in.)**	(82.28 in.)**	(80.87 in.)	(79.68 in.)	(75.43 in.)	(74.25 in.)	(72.83 in.)	(71.65 in.)
420/70R28	1818 mm	2118 mm**	2088 mm**	2052 mm	2022 mm	1914 mm	1884 mm	1848 mm	1818 mm
	(71.57 in.)	(83.39 in.)**	(82.20 in.)**	(80.79 in.)	(79.61 in.)	(75.35 in.)	(74.17 in.)	(72.76 in.)	(71.57 in.)
420/85R24	1818 mm	2118 mm**	2088 mm**	2052 mm	2022 mm	1914 mm	1884 mm	1848 mm	1818 mm
	(71.57 in.)	(83.39 in.)**	(82.20 in.)**	(80.79 in.)	(79.61 in.)	(75.35 in.)	(74.17 in.)	(72.76 in.)	(71.57 in.)
420/85R28 -R2	1816 mm	2112 mm**	2082 mm**	2050 mm	2020 mm	1908 mm	1878 mm	1846 mm	1816 mm
	(71.50 in.)	(83.15 in.)**	(81.97 in.)**	(80.71 in.)	(79.53 in.)	(75.12 in.)	(73.94 in.)	(72.68 in.)	(71.50 in.)
480/65R24	1820 mm	2120 mm**	2090 mm**	2054 mm**	2024 mm**	1916 mm	1886 mm	1850 mm	1820 mm
	(71.65 in.)	(83.46 in.)**	(82.28 in.)**	(80.87 in.)**	(79.68 in.)**	(75.43 in.)	(74.25 in.)	(72.83 in.)	(71.65 in.)
480/65R28	1818 mm	2114 mm**	2084 mm**	2052 mm**	2022 mm**	1910 mm	1880 mm	1848 mm	1818 mm
	(71.57 in.)	(83.23 in.)**	(82.05 in.)**	(80.79 in.)**	(79.61 in.)**	(75.20 in.)	(74.02 in.)	(72.76 in.)	(71.57 in.)
480/70R24	1818 mm	2118 mm**	2088 mm**	2052 mm**	2022 mm**	1914 mm	1884 mm	1848 mm	1818 mm
	(71.57 in.)	(83.39 in.)**	(82.20 in.)**	(80.79 in.)**	(79.61 in.)**	(75.35 in.)	(74.17 in.)	(72.76 in.)	(71.57 in.)
480/70R28	1816 mm	2112 mm**	2082 mm**	2050 mm**	2020 mm**	1908 mm	1878 mm	1846 mm	1816 mm
	(71.50 in.)	(83.15 in.)**	(81.97 in.)**	(80.71 in.)**	(79.53 in.)**	(75.12 in.)	(73.94 in.)	(72.68 in.)	(71.50 in.)
540/65R24	1818 mm	2118 mm**	2088 mm**	2052 mm**	2022 mm**	1914 mm	1884 mm	1848 mm	1818 mm
	(71.57 in.)	(83.39 in.)**	(82.20 in.)**	(80.79 in.)**	(79.61 in.)**	(75.35 in.)	(74.17 in.)	(72.76 in.)	(71.57 in.)
540/65R28	1816 mm	2112 mm**	2082 mm**	2050 mm**	2020 mm**	1908 mm	1878 mm	1846 mm	1816 mm
	(71.50 in.)	(83.15 in.)**	(81.97 in.)**	(80.71 in.)**	(79.53 in.)**	(75.12 in.)	(73.94 in.)	(72.68 in.)	(71.50 in.)
270/95R38	1816 mm	2120 mm	2090 mm	2050 mm	2020 mm	1916 mm	1886 mm	1846 mm	1816 mm
	(71.50 in.)	(83.46 in.)	(82.28 in.)	(80.71 in.)	(79.53 in.)	(75.43 in.)	(74.25 in.)	(72.68 in.)	(71.50 in.)
380/85R30	1816 mm	2114 mm**	2084 mm	2050 mm	2020 mm	1910 mm	1880 mm	1846 mm	1816 mm
	(71.50 in.)	(83.23 in.)**	(82.05 in.)	(80.71 in.)	(79.53 in.)	(75.20 in.)	(74.02 in.)	(72.68 in.)	(71.50 in.)
* With AL180127 steering stop only ** Overall vehicle width exceeds 2.55 m; comply with local traffic regulations.

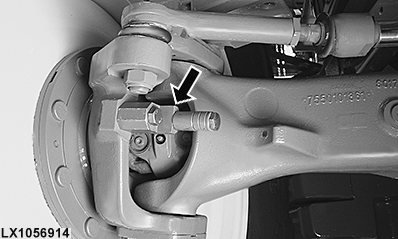

LX1056914-UN-27JUN13

* With AL180127 steering stop only

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 16 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

Front-Wheel Tread Adjustment with Rims for 16 Positions / Positions 9 to 16

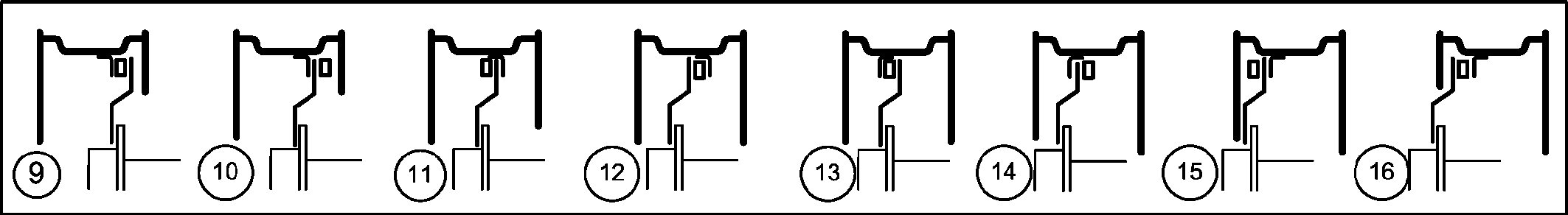

LX1053420-UN-16MAR12

Front-Wheel Tread Adjustment with Rims for 16 Positions / Positions 9 to 16

	Tread width setting on delivery	Tread width setting (front wheels) Arrangement of rim and wheel dish
Tires:		9	10	11	12	13	14	15	16
12.4R28	1820 mm	1720 mm	1690 mm	1654 mm	1624 mm	1516 mm	1486 mm	1450 mm	1420 mm
	(71.65 in.)	(67.72 in.)	(66.54 in.)	(65.12 in.)	(63.94 in.)	(59.68 in.)	(58.50 in.)	(57.09 in.)	(55.91 in.)
13.6R28	1818 mm	1718 mm	1688 mm	1652 mm	1622 mm	1514 mm	1484 mm	1448 mm	1418 mm
	(71.57 in.)	(67.64 in.)	(66.46 in.)	(65.04 in.)	(63.86 in.)	(59.61 in.)	(58.43 in.)	(57.01 in.)	(55.83 in.)
14.9R24	1820 mm	1720 mm	1690 mm	1654 mm	1624 mm	1516 mm	1486 mm	1450 mm	1420 mm
	(71.65 in.)	(67.72 in.)	(66.54 in.)	(65.12 in.)	(63.94 in.)	(59.68 in.)	(58.50 in.)	(57.09 in.)	(55.91 in.)
14.9R28	1818 mm	1718 mm	1688 mm	1652 mm	1622 mm	1514 mm	1484 mm	1448 mm*	1418 mm*
	(71.57 in.)	(67.64 in.)	(66.46 in.)	(65.04 in.)	(63.86 in.)	(59.61 in.)	(58.43 in.)	(57.01 in.)*	(55.83 in.)*
16.9R24	1818 mm	1718 mm	1688 mm	1652 mm	1622 mm	1514 mm	1484 mm*	1448 mm*	1418 mm*
	(71.57 in.)	(67.64 in.)	(66.46 in.)	(65.04 in.)	(63.86 in.)	(59.61 in.)	(58.43 in.)*	(57.01 in.)*	(55.83 in.)*
16.9R28	1816 mm	1712 mm	1682 mm	1650 mm	1620 mm	1508 mm*	1478 mm*	1446 mm*	1416 mm*
	(71.50 in.)	(67.40 in.)	(66.22 in.)	(64.96 in.)	(63.78 in.)	(59.37 in.)*	(58.19 in.)*	(56.93 in.)*	(55.75 in.)*
320/85R28	1820 mm	1720 mm	1690 mm	1654 mm	1624 mm	1516 mm	1486 mm	1450 mm	1420 mm
	(71.65 in.)	(67.72 in.)	(66.54 in.)	(65.12 in.)	(63.94 in.)	(59.68 in.)	(58.50 in.)	(57.09 in.)	(55.91 in.)
340/85R28	1818 mm	1718 mm	1688 mm	1652 mm	1622 mm	1514 mm	1484 mm	1448 mm	1418 mm
	(71.57 in.)	(67.64 in.)	(66.46 in.)	(65.04 in.)	(63.86 in.)	(59.61 in.)	(58.43 in.)	(57.01 in.)	(55.83 in.)
380/70R28	1818 mm	1718 mm	1688 mm	1652 mm	1622 mm	1514 mm	1484 mm	1448 mm	1418 mm
	(71.57 in.)	(67.64 in.)	(66.46 in.)	(65.04 in.)	(63.86 in.)	(59.61 in.)	(58.43 in.)	(57.01 in.)	(55.83 in.)
380/85R24	1820 mm	1720 mm	1690 mm	1654 mm	1624 mm	1516 mm	1486 mm	1450 mm	1420 mm
	(71.65 in.)	(67.72 in.)	(66.54 in.)	(65.12 in.)	(63.94 in.)	(59.68 in.)	(58.50 in.)	(57.09 in.)	(55.91 in.)
380/85R28	1818 mm	1718 mm	1688 mm	1652 mm	1622 mm	1514 mm	1484 mm	1448 mm	1418 mm*
	(71.57 in.)	(67.64 in.)	(66.46 in.)	(65.04 in.)	(63.86 in.)	(59.61 in.)	(58.43 in.)	(57.01 in.)	(55.83 in.)*
420/70R24	1820 mm	1720 mm	1690 mm	1654 mm	1624 mm	1516 mm	1486 mm	1450 mm	1420 mm*
	(71.65 in.)	(67.72 in.)	(66.54 in.)	(65.12 in.)	(63.94 in.)	(59.68 in.)	(58.50 in.)	(57.09 in.)	(55.91 in.)*
420/70R28	1818 mm	1718 mm	1688 mm	1652 mm	1622 mm	1514 mm	1484 mm	1448 mm*	1418 mm*
	(71.57 in.)	(67.64 in.)	(66.46 in.)	(65.04 in.)	(63.86 in.)	(59.61 in.)	(58.43 in.)	(57.01 in.)*	(55.83 in.)*
420/85R24	1818 mm	1718 mm	1688 mm	1652 mm	1622 mm	1514 mm	1484 mm	1448 mm*	1418 mm*
	(71.57 in.)	(67.64 in.)	(66.46 in.)	(65.04 in.)	(63.86 in.)	(59.61 in.)	(58.43 in.)	(57.01 in.)*	(55.83 in.)*
420/85R28 -R2	1816 mm	1712 mm	1682 mm	1650 mm	1620 mm	1508 mm*	1478 mm*	1446 mm*	1416 mm*
	(71.50 in.)	(67.40 in.)	(66.22 in.)	(64.96 in.)	(63.78 in.)	(59.37 in.)*	(58.19 in.)*	(56.93 in.)*	(55.75 in.)*
480/65R24	1820 mm	1720 mm	1690 mm	1654 mm	1624 mm	1516 mm*	1486 mm*	1450 mm*	1420 mm*
	(71.65 in.)	(67.72 in.)	(66.54 in.)	(65.12 in.)	(63.94 in.)	(59.68 in.)*	(58.50 in.)*	(57.09 in.)*	(55.91 in.)*
480/65R28	1818 mm	1714 mm	1684 mm	1652 mm	1622 mm	1510 mm*	1480 mm*	1448 mm*	1418 mm*
	(71.57 in.)	(67.48 in.)	(66.30 in.)	(65.04 in.)	(63.86 in.)	(59.45 in.)*	(58.27 in.)*	(57.01 in.)*	(55.83 in.)*
480/70R24	1818 mm	1718 mm	1688 mm	1652 mm	1622 mm	1514 mm*	1484 mm*	1448 mm*	1418 mm*
	(71.57 in.)	(67.64 in.)	(66.46 in.)	(65.04 in.)	(63.86 in.)	(59.61 in.)*	(58.43 in.)*	(57.01 in.)*	(55.83 in.)*
480/70R28	1816 mm	1712 mm	1682 mm	1650 mm	1620 mm	1508 mm*	1478 mm*	1446 mm*	1416 mm*
	(71.50 in.)	(67.40 in.)	(66.22 in.)	(64.96 in.)	(63.78 in.)	(59.37 in.)*	(58.19 in.)*	(56.93 in.)*	(55.75 in.)*
540/65R24	1818 mm	1718 mm	1688 mm	1652 mm	1622 mm	1514 mm*	1484 mm*	1448 mm*	1418 mm*
	(71.57 in.)	(67.64 in.)	(66.46 in.)	(65.04 in.)	(63.86 in.)	(59.61 in.)*	(58.43 in.)*	(57.01 in.)*	(55.83 in.)*
540/65R28	1816 mm	1712 mm	1682 mm	1650 mm*	1620 mm*	1508 mm*	1478 mm*	1446 mm*	1416 mm*
	(71.50 in.)	(67.40 in.)	(66.22 in.)	(64.96 in.)*	(63.78 in.)*	(59.37 in.)*	(58.19 in.)*	(56.93 in.)*	(55.75 in.)*
270/95R38	1816 mm	1720 mm	1690 mm	1650 mm	1620 mm	1516 mm	1486 mm	1446 mm	1416 mm
	(71.50 in.)	(67.72 in.)	(66.54 in.)	(64.96 in.)	(63.78 in.)	(59.68 in.)	(58.50 in.)	(56.93 in.)	(55.75 in.)
380/85R30	1816 mm	1714 mm	1684 mm	1650 mm	1620 mm	1510 mm	1480 mm*	1446 mm*	1416 mm*
	(71.50 in.)	(67.48 in.)	(66.30 in.)	(64.96 in.)	(63.78 in.)	(59.45 in.)	(58.27 in.)*	(56.93 in.)*	(55.75 in.)*
* With AL180127 steering stop only ** Overall vehicle width exceeds 2.55 m; comply with local traffic regulations.

LX1056914-UN-27JUN13

* With AL180127 steering stop only

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 16 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).
