Front Loader Bracket - Tighten Screws on H310 and H340 Loaders

CC1037410
CC1037410-UN-05APR12

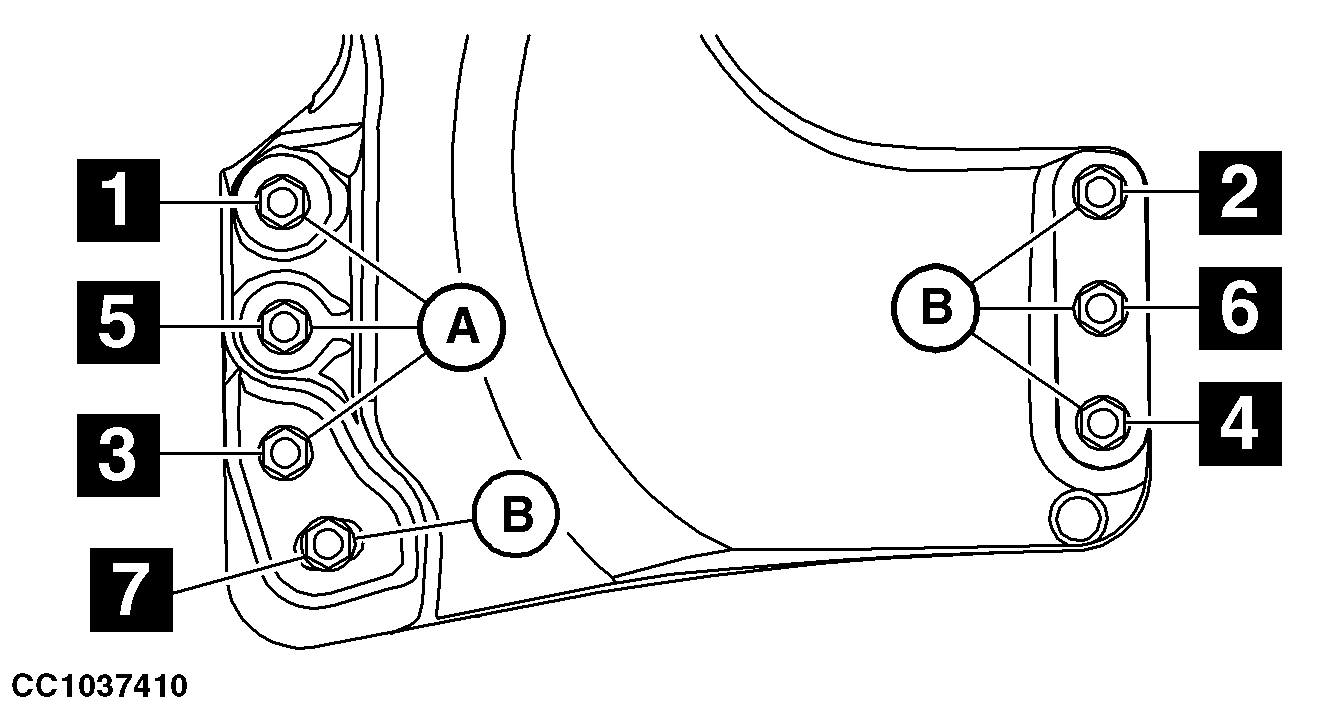

Tighten screws (A) to 580 N.m (428 lb.-ft.) and screws (B) to 620 N.m (457 lb.-ft.). Comply with the specified tightening sequence.
