Rear Wheel Tread Adjustment (with Rack-and-Pinion Axles) - (6105M to 6125M only)

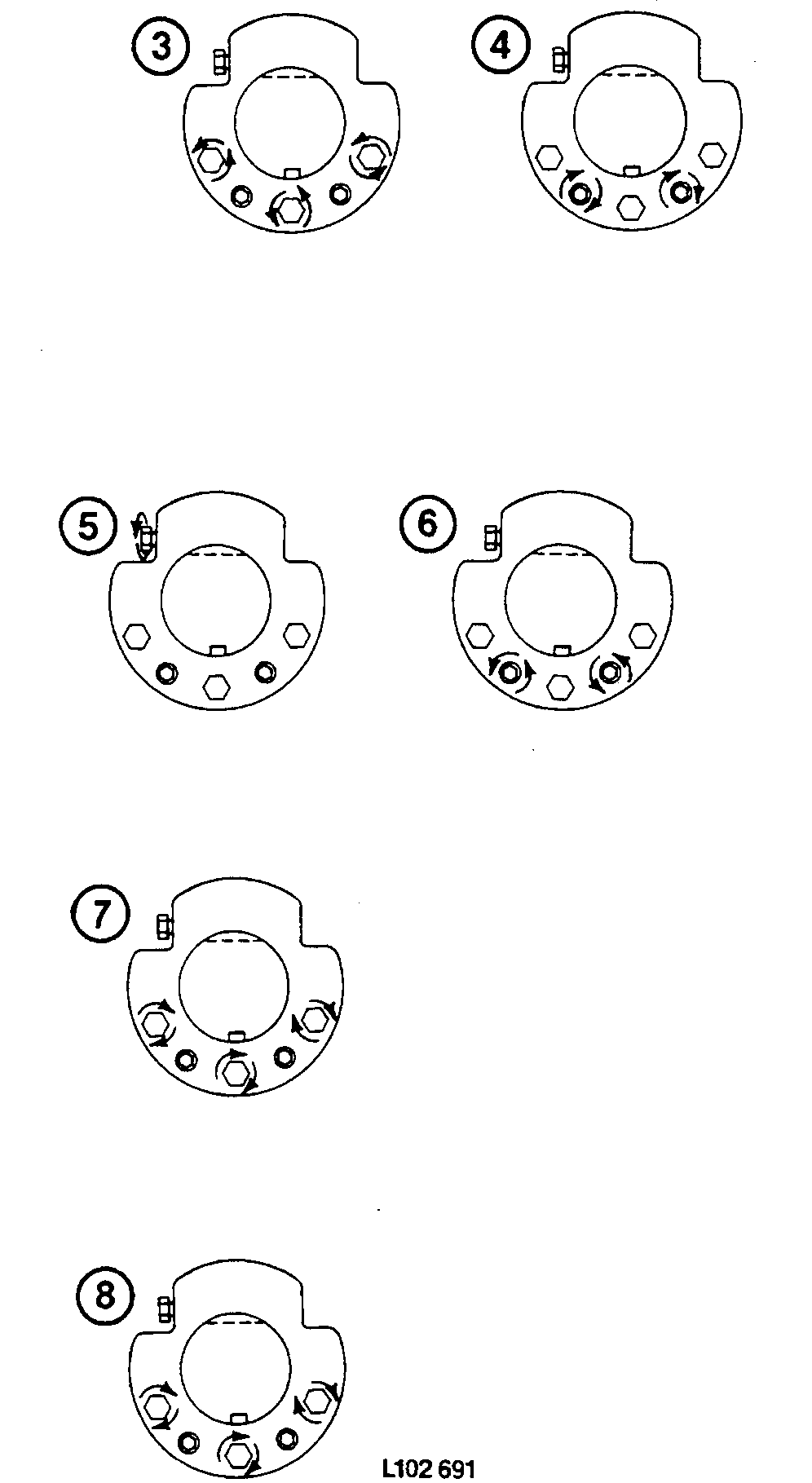

Rear wheel adjustment

L102691-UN-13APR00

NOTE: Adjustment of wheels is only possible when not more than two weights are attached to each wheel.

1. Clean the axle with a wire brush.

2. Jack up tractor and turn rear wheel so that rack on axle faces upward.

3. Loosen the attaching bolts completely.

4. Tighten the jack screws until the screw heads are flush against the face of the wheel hub.

   NOTE: If the wheel hub does not come loose, also slacken off the three screws on the back of the wheel disk. If this does not work, strike the end of the axle several times with a heavy hammer and once again tighten the jack screws evenly. It helps to soak the hub-halves in penetrating oil.

5. Turn adjusting screw in or out until desired position is reached.

6. Back jack screws all the way out against stop, but do not use force. No force should be used.

7. Lubricate threads and retighten attaching bolts alternately to 400 Nm (300 lb.-ft.). When the attaching bolts are tightened to specified torque, the jack screws should be free to turn; if this is not the case, loosen jack screws and retighten attaching screws to specified torque.

8. After completing wheel tread adjustment, make sure that tires and wheel ballast weights do not rub against the tractor. Then drive the tractor approx. 50 m (160 ft.), stop the tractor and retighten attaching bolts to 400 N∙m (300 lb.-ft.). The bolts must be retightened to torque after 4 hours, after 8 hours and several times within the next 100 hours. See "Break-In Period".

IMPORTANT: The distance between the side wall of the tire and the fender must not be less than 40 mm (1.57 in.)¹.

The distance between the running surface (edge) of the tire and the fender must not be less than 60 mm (2.36 in.)¹.

If snow chains are installed on the tires, the minimum distance from the tires to the fenders (side wall to fender and running surface to fender) must be 100 mm (3.94 in.).

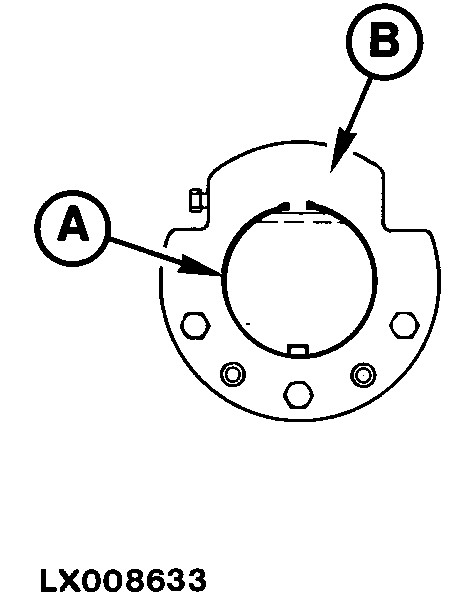

Turn wheel hub (pinion inside)

LX008633-UN-16AUG94

LX008634-UN-16AUG94

For loosening, adjusting and tightening wheel hub, see previous page.

1. To facilitate assembly, remove rear wheel.

2. Remove snap ring (A). Turn adjusting screw so that wheel hub (B) is at maximum width. Remove wheel hub (B).

3. Put wheel on axle at desired position. Turn wheel hub (B) around and install it.

4. Install wheel and snap ring (A). For further assembly, see previous page.

IMPORTANT: The distance between the side wall of the tire and the fender must not be less than 40 mm (1.57 in.)¹.

The distance between the running surface (edge) of the tire and the fender must not be less than 60 mm (2.36 in.)¹.

If snow chains are installed on the tires, the minimum distance from the tires to the fenders (side wall to fender and running surface to fender) must be 100 mm (3.94 in.).
