Check Toe-In

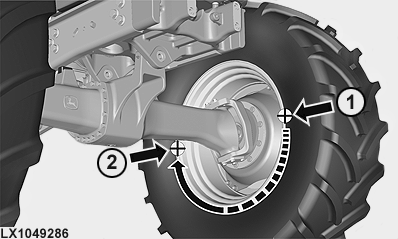

LX1049286-UN-08JUN10

Tractor with Front-Wheel Drive

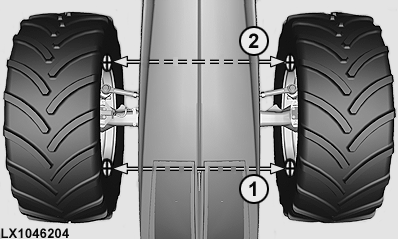

LX1046204-UN-16JUN11

Tractor with Front-Wheel Drive

LX1049289-UN-09JUN10

Tractor without Front-Wheel Drive

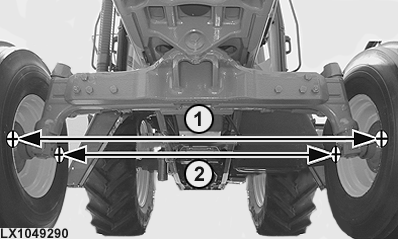

LX1049290-UN-09JUN10

Tractor without Front-Wheel Drive

1. Make sure wheels are in the straight forward position by driving tractor in a straight line for approx. 15 m (50 ft).

   CAUTION: Keep the engine switched off while making the measurements, and secure the tractor so that it cannot roll away.

2. First, put marks (+) at axle height on the front (1) of each of the two front wheels.

3. At the front (1), measure distance from the edge of the right rim to the edge of the left rim, and make a note of this measurement.

4. Roll the tractor forward by half the circumference of the front wheel, bringing the (+) mark to the rear (2).

5. At the rear (2), measure distance from the edge of the right rim to the edge of the left rim, and make a note of this measurement.

Tractor with front-wheel drive: Dimension at the front (1) must correspond to dimension at the rear (2). A deviation of ± 1.5 mm (0.06 in.) is permissible.

Tractor without front-wheel drive: Dimension at the front (1) must be 3 to 9 mm (0.12 to 0.35 in.) less than dimension at the rear (2).
