Dimensions (Tractors with Open Operator's Station) - 6140M Tractor

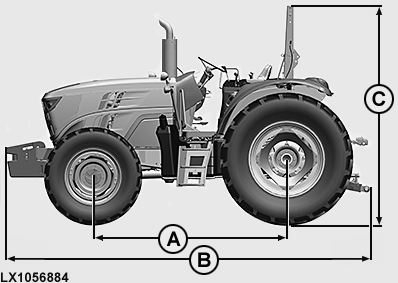

LX1056884-UN-07MAY13

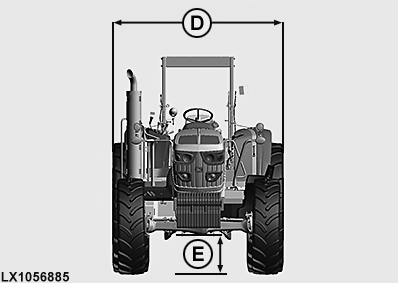

LX1056885-UN-07MAY13

	6140M
A - Wheel base ..............	2765 mm (108.9 in.)
B - Length
• Basic weight to draft link in horizontal position ..............	4825 mm (190.0 in.)
• Front weight to draft link in horizontal position..............	5245 mm (206.5 in.)
C - Height
- From ground to top edge with ROPS in upright position (without beacon light)..............	2955 mm (116.3 in.)
D - Width
• Front axle - flange to flange ..............	1780 mm (70.1 in.)
• Front axle - maximum tread width without extension ..............	2250 mm (88.6 in.)
• Rear axle - flange to flange ..............	1664 mm (65.5 in.)
• Maximum width for road travel ..............	2550 mm (100.4 in.)
E - Ground clearance..............	505 mm (19.9 in.)
All measurements are made with the following tires
• Tires on front wheels ..............	540/65 R28
• Diameter ..............	144 cm (59.8 in.)
• Tires on rear wheels ..............	650/65 R38
• Diameter ..............	185 cm (72.8 in.)
