Adjust Toe-In - Adjustable Front Axle without Front-Wheel Drive

1.

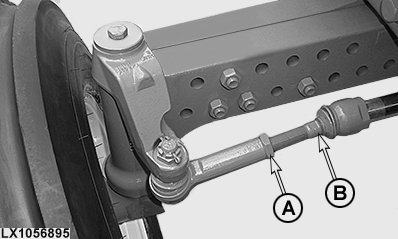

   LX1056895-UN-04JUN13

   A - Jam Nut

   B - Rod

   Align front wheels for traveling straight ahead, shut off the engine, move the transmission to park position and remove the ignition key.

---




2. Loosen lock nut (A).

3. NOTE: Adjust toe-in to 3 - 9 mm (0.12 - 0.35 in.). See Check Toe-In in this section.

   Turn rod (B) to obtain desired toe-in or toe-out.

   Item	Measurement	Specification
   Maximum toe-in or toe-out	Distance	3 - 9 mm (0.12 - 0.35 in.)

4. Tighten lock nut (A) to specified torque.

   Item	Measurement	Specification
   Locknut	Torque	340 Nm 250 lb-ft
