Adjustable Front Axle without Front-Wheel Drive - Tread Widths without Axle Extensions

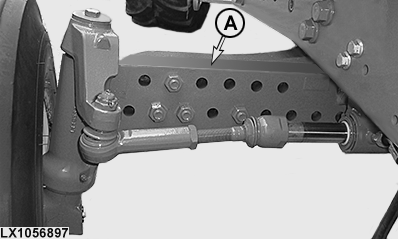

LX1056897-UN-04JUN13

Adjustable Front Axle without Axle Extensions

If wheels are removed to adjust tread, tighten wheel bolts to 310 Nm (230 lb.-ft.).

After adjusting tread, tighten axle bolts to 400 Nm (300 lb.-ft.).

IMPORTANT: After adjusting tread, check tightness of these bolts after 4 and 8 hours of operation, and frequently during the next 100 hours of operation.

Tires	Position of tire valve	Axle hole position
		1	2	3	4	5	6
10.00-16	Out	1524 mm (60.0 in.)	1626 mm (64.0 in.)	1728 mm (68.0 in.)	1830 mm (72.0 in.)	1932 mm (76.1 in.)	2034 mm (80.1 in.)
	In	1483 mm (58.4 in.)	1585 mm (62.4 in.)	1687 mm (66.4 in.)	1789 mm (70.4 in.)	1891 mm (74.4 in.)	1993 mm (78.5 in.)
11.00-16	Out	1522 mm (59.9 in.)	1624 mm (63.9 in.)	1726 mm (67.9 in.)	1828 mm (72.0 in.)	1930 mm (76.0 in.)	2032 mm (80.0 in.)
	In	1481 mm (58.3 in.)	1583 mm (62.3 in.)	1685 mm (66.3 in.)	1787 mm (70.3 in.)	1889 mm (74.4 in.)	1991 mm (78.4 in.)
11L-15	Out	1527 mm (60.1 in.)	1629 mm (64.1 in.)	1731 mm (68.1 in.)	1833 mm (72.2 in.)	1935 mm (76.2 in.)	2037 mm (80.2 in.)
	In	1486 mm (58.5 in.)	1588 mm (62.5 in.)	1690 mm (66.5 in.)	1792 mm (70.6 in.)	1894 mm (74.6 in.)	1996 mm (78.6 in.)
