Adjustable Front Axle without Front-Wheel Drive - Tread Widths with Axle Extensions

LX1056898-UN-04JUN13

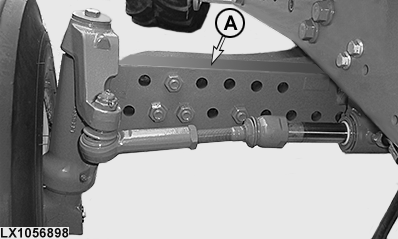

Adjustable Front Axle with Extensions

Adjustable front axle (A) has seven tread settings with extensions.

If wheels are removed to adjust tread, tighten wheel bolts to 310 Nm (230 lb-ft).

After adjusting tread, tighten axle bolts to 400 Nm (300 lb.-ft.).

IMPORTANT: After adjusting tread, check torque of these bolts after 4 and 8 hours of operation, and frequently during the next 100 hours of operation.

Tires	Position of tire valve	Axle hole position
		1	2	3	4	5	6	7
10.00-16	Outside	1960 mm (77.0 in.)	2060 mm (81.0 in.)	2160 mm (85.0 in.)	2265 mm (89.0 in.)	2365 mm (93.0 in.)	2465 mm (97.0 in.)	2570 mm (101.0 in.)
11.00-16	Outside	1960 mm (77.0 in.)	2060 mm (81.0 in.)	2160 mm (85.0 in.)	2265 mm (89.0 in.)	2365 mm (93.0 in.)	2465 mm (97.0 in.)	2570 mm (101.0 in.)
11L-15	Outside	2041 mm (80.4 in.)	2141 mm (84.3 in.)	2241 mm (88.2 in.)	2346 mm (92.4 in.)	2446 mm (96.3 in.)	2546 mm (100.2 in.)	2646 mm (104.2 in.)

NOTE: On public roads, comply with local traffic regulations.
