Rear Wheel Tread Adjustment with Rims for 8 Positions - Flanged Axle (Tractor 6140M)

LX1053404-UN-12MAR12

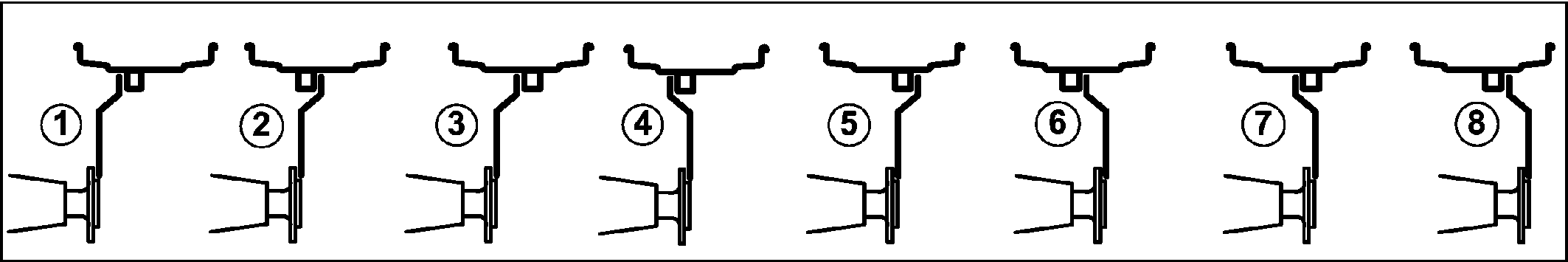

	Tread width setting on delivery	Tread width setting (rear wheels) Arrangement of rim and wheel dish
Tires:		1	2	3	4	5	6	7	8
460/85R42	1832 mm	1900 mm	1832 mm	1786 mm	1718 mm	1640 mm	1572 mm	— **	— **
	(72.13 in.)	(74.80 in.)	(72.13 in.)	(70.31 in.)	(67.64 in.)	(64.57 in.)	(61.89 in.)
480/80R42	1832 mm	1900 mm	1832 mm	1786 mm	1718 mm	1640 mm	— **	— **	— **
	(72.13 in.)	(74.80 in.)	(72.13 in.)	(70.31 in.)	(67.64 in.)	(64.57 in.)
480/80R42 -R2	1832 mm	1900 mm	1832 mm	1786 mm	1718 mm	1640 mm	— **	— **	— **
	(72.13 in.)	(74.80 in.)	(72.13 in.)	(70.31 in.)	(67.64 in.)	(64.57 in.)
* Overall vehicle width exceeds 2.55 m; comply with local traffic regulations. ** Installation in this position is not allowed

IMPORTANT: Comply with instructions on rear-wheel tread adjustment with rims for 8 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).
