Swinging Drawbar

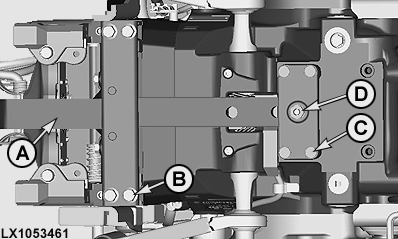

LX1053461-UN-28JAN13
CAT II Drawbar
A - Drawbar
B - Cap Screws (4 used), 310 Nm (230 lb-ft)
C - Cap Screws (4 used), 310 Nm (230 lb-ft)
D - Hex. Stopper (1 used), 310 Nm (230 lb.-ft.)
The drawbar is used to pull drawn equipment of all types, particularly
PTO-driven implements. The drawbar is located to increase the rear
axle load and slightly reduce load on the front axle.
Besides having a variable swinging range, the drawbar can also
be adjusted lengthwise. Maximum permissible static vertical loads
and towable loads are stated in the Specifications section.
Depending on Category, drawbar (A) can be set to the following
lengths:
|
CAT II ..............
|
250 mm
|
350 mm
|
400 mm
|
|
9.8 in.
|
13.8 in.
|
15.7 in.
|
These lengths determine the distance from the end of the PTO
shaft to the attachment point of the drawbar.
To adjust, take off hex. stopper (D) and pull out the pin. Push
drawbar (A) and align the holes so that they are congruent. Then insert
the pin, screw on hex. stopper (D), and tighten to the prescribed
torque.
NOTE: Drawbar components that are subject to wear must be checked
every 250 hours (see Service / Every 250 Hours). Replace them if necessary.
NOTE: Towing on public roads with the drawbar set to one side
is not permitted!
|
|
