Comfort Seat MSG85

LX1056925-UN-12MAY14

LX1056926-UN-12MAY14

IMPORTANT: When adjusting the seat, there is a danger of crushing. Objects placed in the cab may limit free space. Make sure that there is sufficient distance to adjacent components to prevent collisions. Accidental contact with the controls could cause the tractor or implement to operate.

IMPORTANT: Align and lock the operator's seat in driving direction as a rule when driving the tractor.

• Adjust height

To adjust the seat upward, raise it until it clicks into place (3 detent positions). To adjust downward, raise the seat to the stop position then lower it.

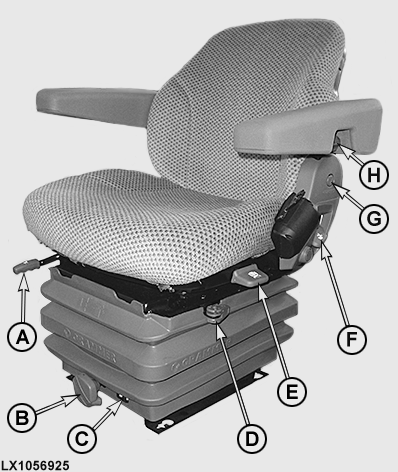

• A — Fore/aft adjustment

Pull lever (A) and move the seat to the desired position. Let the lever click into place.

• B — Weight adjustment

The operator's seat must be occupied in order to adjust it to the operator's weight. To adjust the seat to the operator's weight, allow the seat to settle, then adjust suspension as desired by means of crank (B).

NOTE: The operator's seat can be set for a weight of 50 to 130 kg (110 to 285 lb).

• C — Weight indicator Observe indicator (C) to check the weight setting.

• D — Adjust fore/aft suspension

• Lever (D) forward - fore/aft suspension active
• Lever (D) backward - no fore/aft suspension

• E — Adjust swivel

IMPORTANT: Use the swivel to the left only for entering and exiting.

The seat swivel is operated by means of lever (E) as follows:

Pull up the lever and the seat can swivel freely to the left and right by 15°. To lock, press the lever down and seat snaps into place at the next 7.5° position.

• F — Adjust tilt of backrest

Pull lever (F) upwards and hold. Tilt the angle of the backrest to the desired position and let the lever latch back in audibly.

• G — Adjust height of armrests

On both sides, remove cover (G), loosen the hex. nut and adjust the armrest to the desired position. Tighten the hex. nut and re-install cover (G).

• H — Adjust tilt of armrests

Knob (H) allows armrest tilt to be adjusted (infinitely variable). To lower the armrest by 30°, press the armrest tilt adjuster (H) into the armrest.

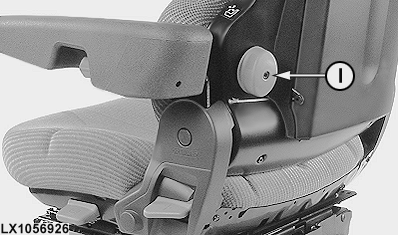

• I — Adjust lumbar support on backrest

Use knob (I) to adjust the position of the lumbar support.
