Battery Cut-Off Switch (If Equipped)

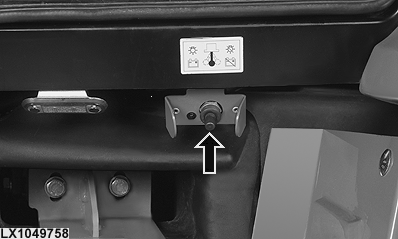

LX1049758-UN-03DEC10

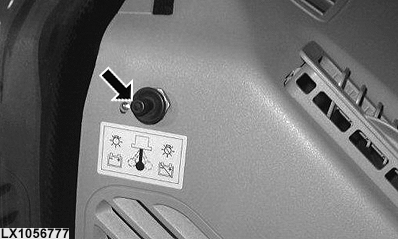

LX1056777-UN-17DEC12

For Sweden Only

This switch allows the battery to be cut off from the tractor's electrical system.

Activate battery cut-off switch (disconnect battery from the electrical system):

1. Turn off key switch and wait approx. 30 seconds. During this time, the indicator light of the battery cut-off switch will flash.
2. After approx. 30 seconds, flashing will stop and the indicator light will glow continuously. Then the battery cut-off switch may be activated.

CAUTION: Never switch off the power at the battery cut-off switch while the engine is running! This may damage the electronic system of the tractor. In addition, the voltage peaks that will occur at the alternator may be dangerous.

IMPORTANT: The battery cut-off switch cannot be activated as long as the indicator light is flashing.

IMPORTANT: During a long storage period always turn battery cut-off switch to the OFF-position (tractor electrical system disconnected from battery power supply). Battery will be discharged if the tractor is not used and the battery cut-off switch is in the ON position.
