Adjusting Toe-in on Front-Wheel Drive Axles

1.

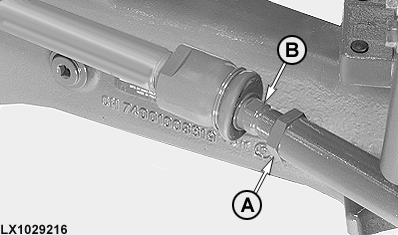

   LX1029216-UN-02APR03

   A - Lock Nut

   B - Rod

   Align front wheels for travelling straight ahead, shut off the engine, move the transmission to park position and remove the ignition key.

---




2. Loosen locknut (A).

3. NOTE: A toe-in of ± 1.5 mm (0.06 in.) is permissible. See Check Toe-In in this section.

   Turn rod (B) to obtain desired toe-in or toe-out.

   Item	Measurement	Specification
   Maximum toe-in or toe-out	Distance	1.5 mm (0.06 in.)

4. Tighten lock nut (A) to specified torque.

   Item	Measurement	Specification
   Locknut	Torque	328 to 363 Nm 242 to 267 lb-ft
