Front Loader Implements - Front loader Consoles for Loaders H360 and H380

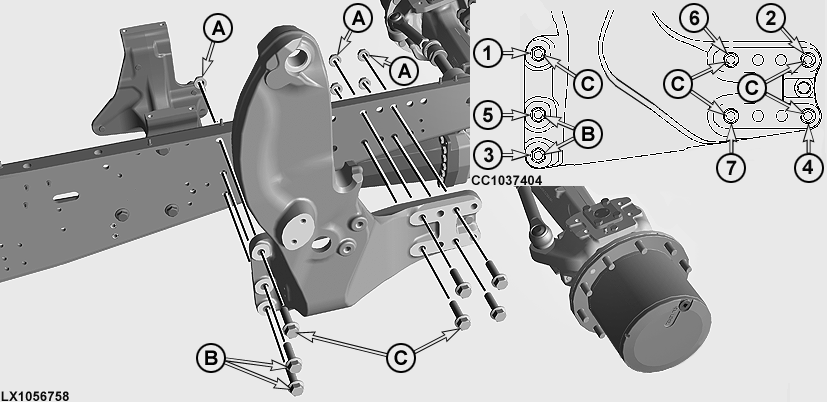

LX1056758-UN-09OCT12

Hardware used on John Deere front loader brackets
Item	Designation	Width across flats	Standard	Thread identifier	Length	Identification / Grade
A (5 used)	Hex. Nut with Flange	30 mm	ISO4161	M20 x 2.5	-	10
B + C (7 pieces)	Cap Screw with Flange	30 mm	JDS121	M20 x 2.5	70 mm (2.8 in.)	10.9

The front loader consoles are arranged as follows. The screws (C) are tightened with a torque of 580 N•m (428 lb-ft). The screws (B) are tightened with a torque of 620 N•m (457 lb-ft). Follow the specified order when doing so.

Check torque regularly; see Section 85, Lubrication and Periodic Service.

IMPORTANT: A front loader checked and approved by John Deere is available for purchase.

When installing the John Deere front loader consoles, use only suitable attaching elements as shown in the illustration above.

Comply also with Operator's Manual and Installation Instructions of the front loader.
