Digital Display - Information Menu

LX1057736-UN-02JUL12

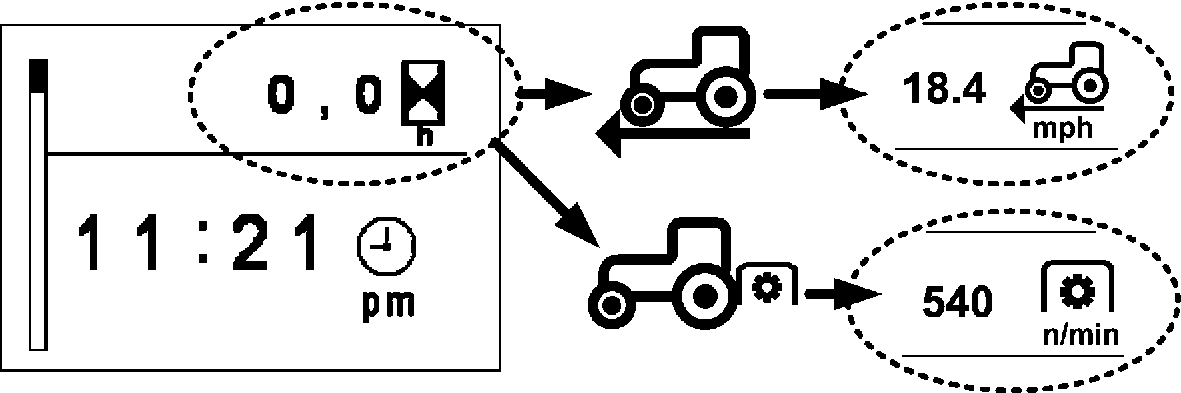

After turning on the ignition, the operating hours are displayed in the upper part of the digital display. The display changes automatically as listed below.
Ignition on ..............	Display of operating hours and time
Tractor moves..............	Display of travel speed
Rear PTO on..............	Display of PTO speed

LX1057735-UN-12JUL12

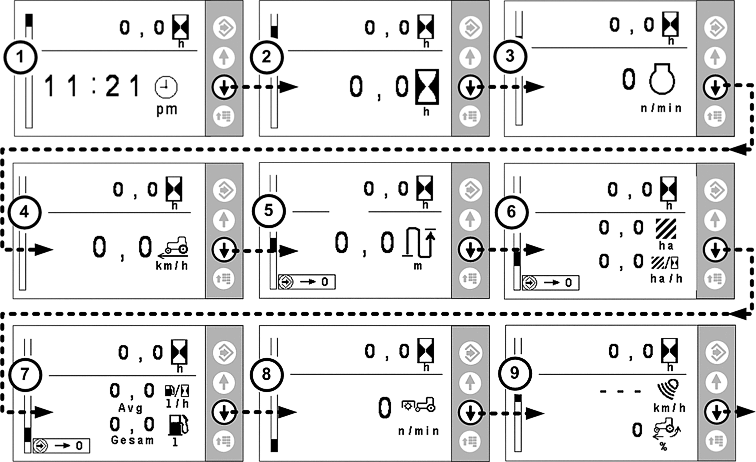

The illustration shows the pages of the information menu. Use the arrow buttons to alternate between the different pages. Press the menu button and the start page will appear.
1. Display of time	4. Travel speed	7. Fuel consumption per hour and fuel consumption since last reset
2. Operating hours	5. Distance covered	8. Front PTO speed
3. Engine speed	6. Total area covered and area covered per hour	9. Travel speed (measured by means of radar) and wheel slip in percent
Note: On pages 5, 6 and 7 values are reset by pressing the confirm button. Page 9 is only displayed if the tractor is equipped with radar.
