Exhaust Filter Cleaning with Tractor Parked

LX1049778
LX1049778-UN-22JUL10

LX1049777
LX1049777-UN-22JUL10

Exhaust filter cleaning with the tractor parked cannot be performed unless one of the instructions for the operator appears (see opposite). See also steps 1. and 2. at Exhaust Cleaning System, Information for Operator in this Section. Do not initiate exhaust filter cleaning with tractor parked while automatic exhaust filter cleaning is in progress.

CAUTION: Comply with Clean Exhaust Filter Safely in Section 05.

IMPORTANT: Select a suitable space to park the tractor and lower any implements all the way down to the ground.

No other tractor functions may be used while exhaust filter cleaning is taking place with the tractor parked. Excluded from this are functions that may be required for an emergency shut-down of the tractor.

Do not start exhaust filter cleaning if the fuel gauge has been showing a low fuel level for a long time.

NOTE: During exhaust filter cleaning, the engine control unit assumes control of the engine functions. It is therefore normal for engine speed to change during the cleaning process. Duration of cleaning depends on severity of soot level.

  1. LX1057742
    LX1057742-UN-06JUL12

    Second Page of Engine Menu

    LX1056690
    LX1056690-UN-04JUL12

    Summary of Buttons

    1 - Confirm Button

    2 - Up Arrow Switch

    3 - Down Arrow Switch

    4 - Menu Button

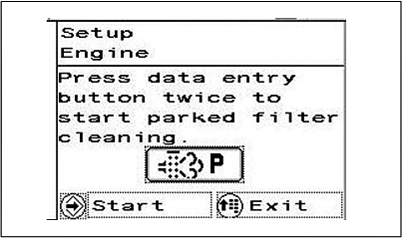

    Initiate exhaust filter cleaning with tractor parked: Access the second page in the engine menu of the digital display, see the relevant text in this Section.

    Select the exhaust filter cleaning icon and press the confirm button.


  2. LX1057743
    LX1057743-UN-06JUL12

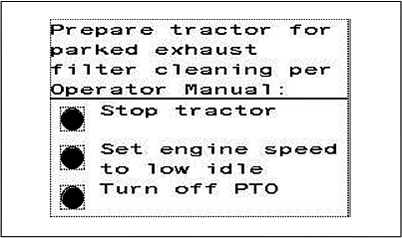

    This page checks if the tractor is ready for exhaust filter cleaning. If all conditions are met, this will be indicated by three solid circles.

    • Stop the tractor (engage park lock and park brake).
    • Switch off front and rear PTOs.
    • Set engine speed to slow idle.

    Press the menu button to continue with the next step.

    Cancel the exhaust filter cleaning function - The procedure can be canceled in different ways:

    • Pressing the menu button.
    • Pressing the accelerator pedal.
    • Shutting down the engine.
    • Switching on the rear PTO.
    • Changing the load on the hydraulic system.
    • Moving the vehicle.

    NOTE: Do not cancel exhaust filter cleaning unless there is an important reason to do so.


  3. LX1057744
    LX1057744-UN-09JUL12

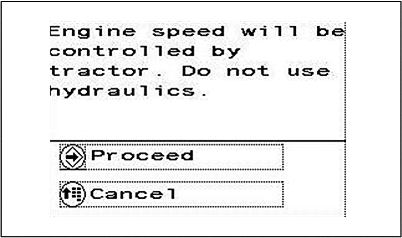

    A note informing the operator of the following is displayed:

    • The tractor will assume control of the engine speed
    • Do not operate any tractor functions during exhaust filter cleaning

    Proceed by pressing the confirm button. Cancel by pressing the menu button.


  4. LX1057745
    LX1057745-UN-09JUL12

    LX1057737
    LX1057737-UN-06SEP12

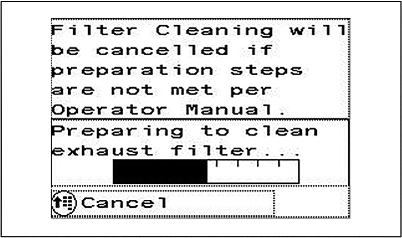

    Preparation phase begins. A status bar appears on the display showing how much time remains before exhaust filter cleaning starts.

    At the same time, an indicator light comes on (see arrow) to indicate exhaust filter cleaning.


  5. LX1057746
    LX1057746-UN-09JUL12

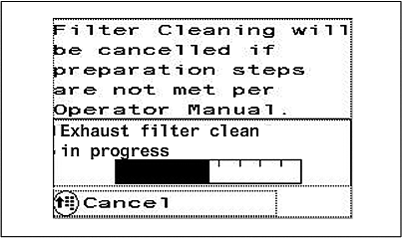

    After the preparation phase, the cleaning phase begins. A second status bar appears, showing how far exhaust filter cleaning has progressed.


  6. When exhaust filter cleaning is completed, a message to this effect appears on the display.

    After approx. 30 seconds, the exhaust temperature indicator light goes out and the tractor can be operated again.

    IMPORTANT: Do not shut off the engine immediately after exhaust filter cleaning. Run the engine for a few minutes at slow idle to allow the exhaust system to cool down sufficiently. This is not necessary if it is intended to operate the tractor immediately after exhaust filter cleaning.

  7. Error Messages: Error messages may be generated during and after exhaust filter cleaning.

    Error message

    Remedy

    Exhaust filter cleaning not completed.

    Initiate exhaust filter cleaning with tractor parked once again.

    If the message is shown repeatedly, contact your John Deere™ dealer.

    Exhaust filter cleaning canceled. Engine speed not at slow idle.

    Set engine speed to slow idle. Initiate exhaust filter cleaning with tractor parked once again.

    Exhaust filter cleaning canceled. Wheel speed not zero.

    Prepare the tractor as specified and do not move it during exhaust filter cleaning. Initiate exhaust filter cleaning with tractor parked once again.

    Exhaust filter cleaning canceled. PTO is not switched off.

    Prepare the tractor as specified and do not switch on the PTO during exhaust filter cleaning. Initiate exhaust filter cleaning with tractor parked once again.
