Vehicle Controls with PowrQuad™ PLUS and AutoQuad™ PLUS Transmissions

LX1056622-UN-10SEP12

LX1056623-UN-13JUL12

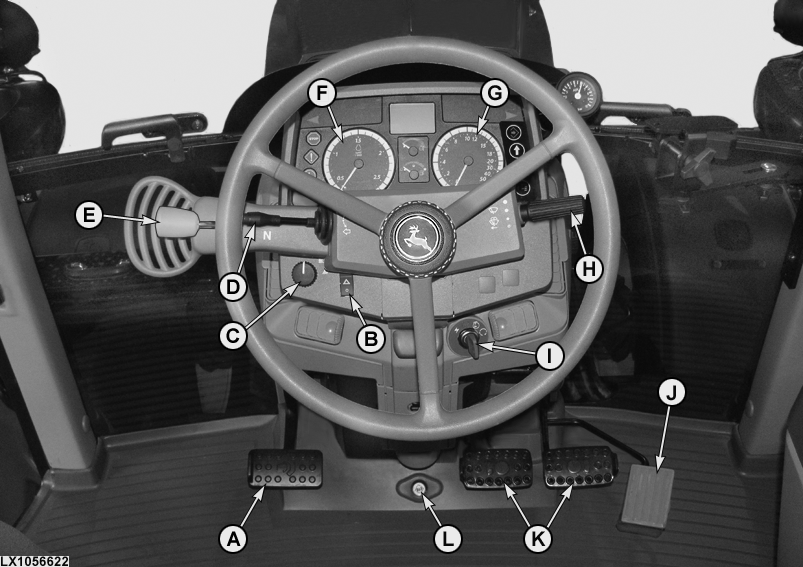

Vehicle Controls with PowrQuad™ PLUS Transmission Shown

A - Clutch Pedal

B - Hazard Light Switch

C - Light Switch

D - Turn-Signal Lever

E - Reverser Lever

F - Tachometer

G - Speedometer

H - Wiper Switch

I - Key Switch

J - Accelerator Pedal

K - Left and Right Brake Pedals

L - Differential Lock

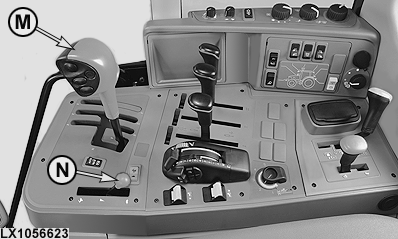

M - Range Shift Lever with Gear Shift Switches, Automatic Button and Hand Clutch Button

N - Hand Throttle
