Fuses and Relays (LCS) and (FRM) - Tractors with Cab from Model Year 2013

1. General information

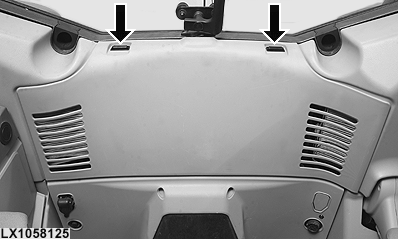

   LX1058125-UN-06SEP12

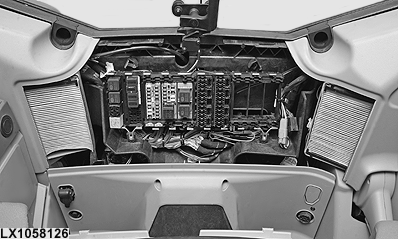

   LX1058126-UN-06SEP12

   The fuse and relay box of the Load Center Secondary (LCS) circuit is located behind the operator's seat, below the rear window.

   Press down latches (A) and lift off the trim panel.

   IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one stated in the table.

   IMPORTANT: Some fuse/relay positions are vacant when the tractor is delivered; these must be left vacant until the appropriate option is retro-fitted.

   NOTE: Depending on how the tractor is equipped, it may not have all the fuses and relays shown below.

---




2. Summary of fuse and relay box (LCS)

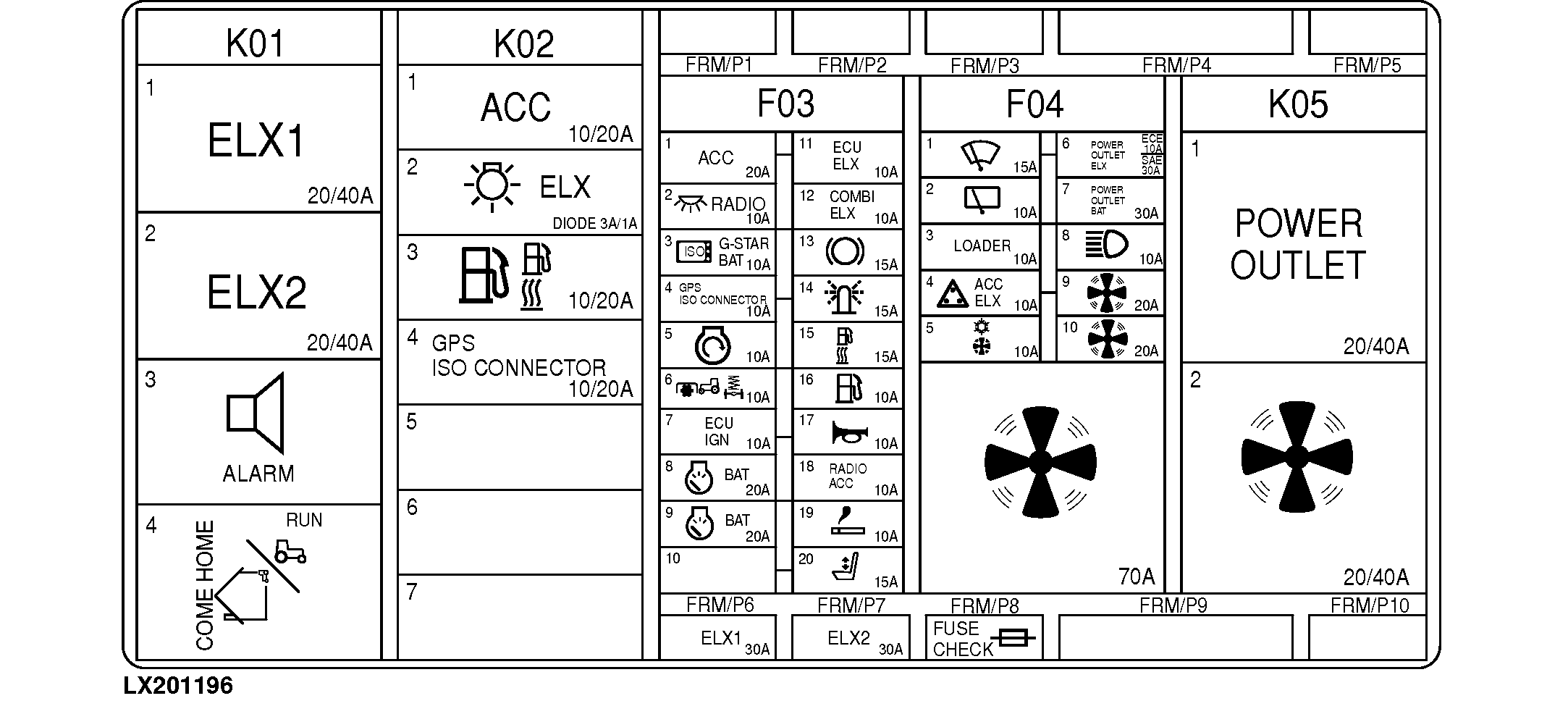

   LX201196-UN-31MAR14

   F03 -

   F04 -

   K01 -

   K02 -

   K04 -

   K05 -

   FRM -

   FUSE CHECK - Fuse Tester

   FUSE RETAINER - Retainer of Tool for Fuse Changes (Fits all Fuse Types)

   SPARE - Spare Fuses

---




3. F03LCS - Fuses (LCS)

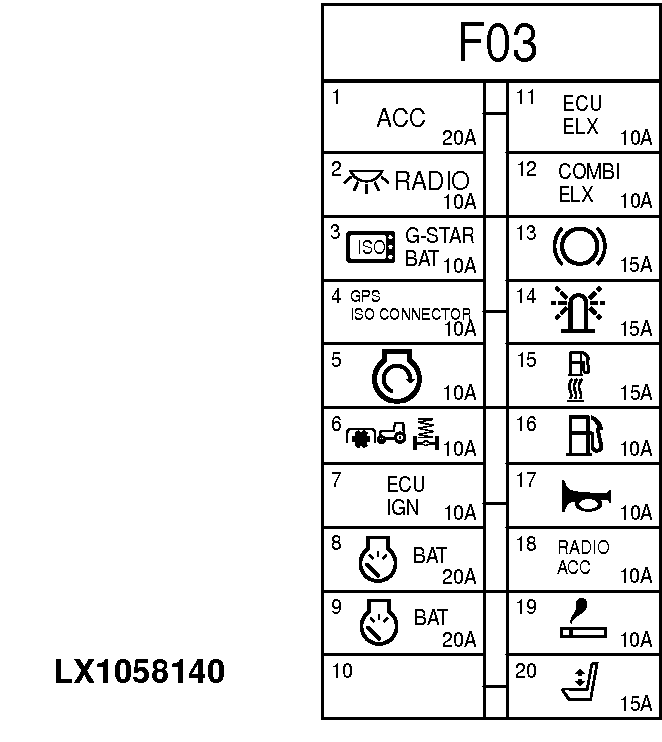

   LX1058140-UN-10SEP12

   Fuse no.	Capacity (amps)	Consumer	Group	Circuit
   F03LCS/01	20 amps	Power supply for accessories (ACC)		ACC
   F03LCS/02	10 amps	Dome light, access-step light, radio		BAT
   F03LCS/03	10 amps	GreenStar™ (AMS)		BAT
   F03LCS/04	10 amps	ISO connection for GPS		BAT
   F03LCS/05	10 amps	Ignition switch		BAT
   F03LCS/06	10 amps	Front chassis control unit		BAT
   F03LCS/07	10 amps	Engine control unit		IGN
   F03LCS/08	20 amps	Instrument unit		BAT
   F03LCS/09	20 amps	Instrument unit, immobilizer control unit		BAT
   F03LCS/10	-	Not used
   F03LCS/11	10 amps	Engine control unit, immobilizer control unit		ELX
   F03LCS/12	10 amps	Main control unit		ELX
   F03LCS/13	15 amps	Sensor unit for brake pedal		ELX
   F03LCS/14	15 amps	Beacon lights		ELX
   F03LCS/15	15 amps	Fuel preheater		IGN
   F03LCS/16	10 amps	Fuel pump		IGN
   F03LCS/17	10 amps	Horn		ACC
   F03LCS/18	10 amps	Radio		ACC
   F03LCS/19	10 amps	Cigarette lighter		ACC
   F03LCS/20	15 amps	Operator’s seat		BAT

---




4. F04LCS - Fuses (LCS)

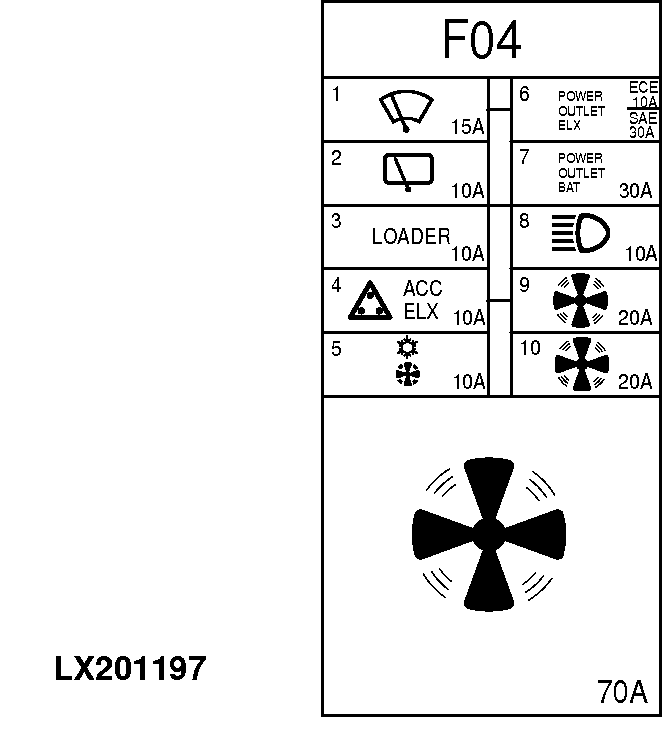

   LX201197-UN-31MAR14

   Fuse no.	Capacity (amps)	Consumer	Group	Circuit
   F04LCS/01	15 amps	Windshield wiper		ELX
   F04LCS/02	10 amps	Rear window wiper		ELX
   F04LCS/03	10 amps	Connector for front loader (X037-1F)		ELX
   F04LCS/04	10 amps	Connector for accessories (X037-3F) Trailering lights (if equipped)		ELX
   F04LCS/05	10 amps	Fan, air-conditioning system		ELX
   F04LCS/06	30 amps 10 amps	3-terminal socket, power outlet strip, 7-terminal socket (SAE) 3-terminal socket, power outlet strip (ECE)		ELX
   F04LCS/07	30 amps	3-terminal socket, power outlet strip		BAT
   F04LCS/08	10 amps	Lights		BAT
   F04LCS/09	20 amps	Fan motor		BAT
   F04LCS/10	20 amps	Fan motor		BAT

---
