Fan and Air Louvers

LX1042592-UN-03JUL07

LX1056719-UN-16JUL12

LX007940-UN-15AUG94

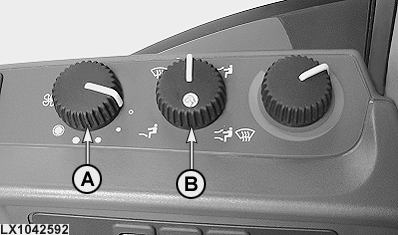

The four fan speeds are controlled by a switch (A). The general direction of the airflow can be altered using switch (B).

De-icing or de-fogging the windshield

Set the heater to maximum heat output. Set switch (B) to symbol (D) and turn switch (A) (fan) to position 4.

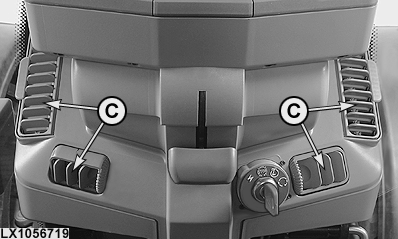

If the airflow is to be directed at the operator, set switch (B) to symbol (E). Turn on the fan at switch (A). The direction and force of the airflow can be further adjusted at louvers (C).

If the airflow is to be directed evenly around the cab, set switch (B) to symbol (F). Turn on the fan at switch (A).

If the airflow is to be directed into the footwell, set switch (B) to symbol (G). Turn on the fan at switch (A).

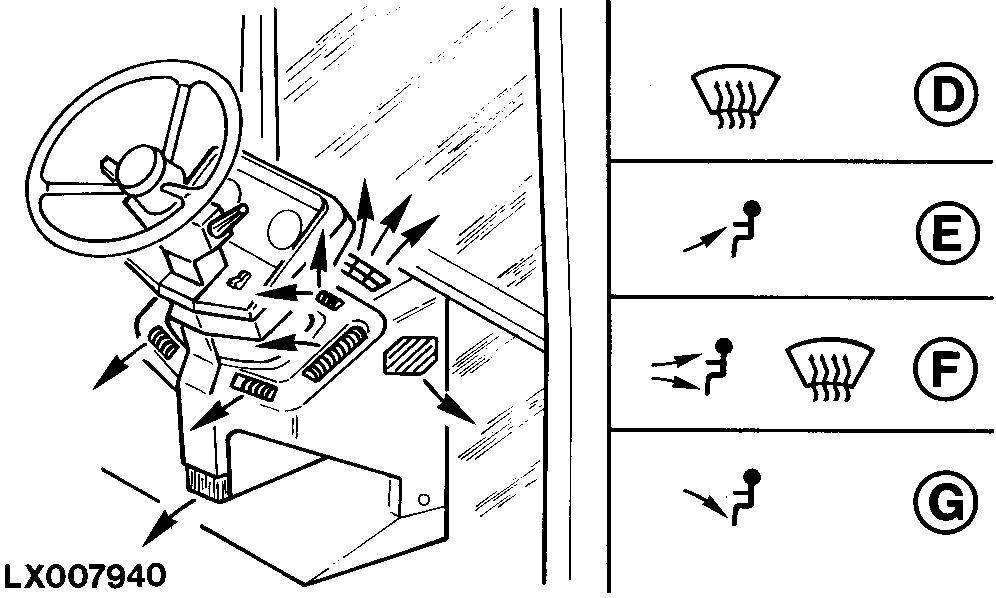

Direction of airflow

Positions of switch (B):

• Symbol (D) = air flows to windshield
• Symbol (E) = air flows to operator
• Symbol (F) = air flows to windows, operator and footwell
• Symbol (G) = air flows to footwell
