Air Conditioning System

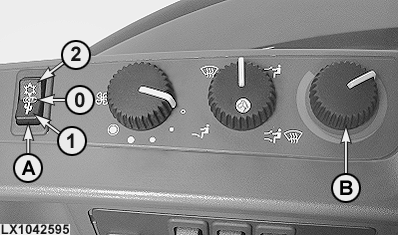

LX1042595-UN-03JUL07

A - Air conditioning switch

B - Cooling effect regulator

0 - Air-conditioning off

1 - "Winter" position

2 - "Summer" position

Turn on air conditioning system at switch (A). Regulate the cooling effect at control (B). The cooling effect is increased by turning the knob further counterclockwise. Set the fan and louvers as desired.

IMPORTANT: To maintain consistently high performance, turn on the air-conditioning system for two or three minutes every month, regardless of weather conditions or season (with engine at low idle). Control (B) should be set for maximum cooling.

At ambient temperatures below 4°C (39°F), the cab should first be heated (using the heating system) so that the temperature inside the cab is as high as possible.

NOTE: In position (1) of switch (A) the air conditioning system can be operated regardless of ambient temperature. In position (2) the air-conditioning system can only be operated at temperatures above 18°C (64°F).
